Torque Specifications - CROSSMEMBERS

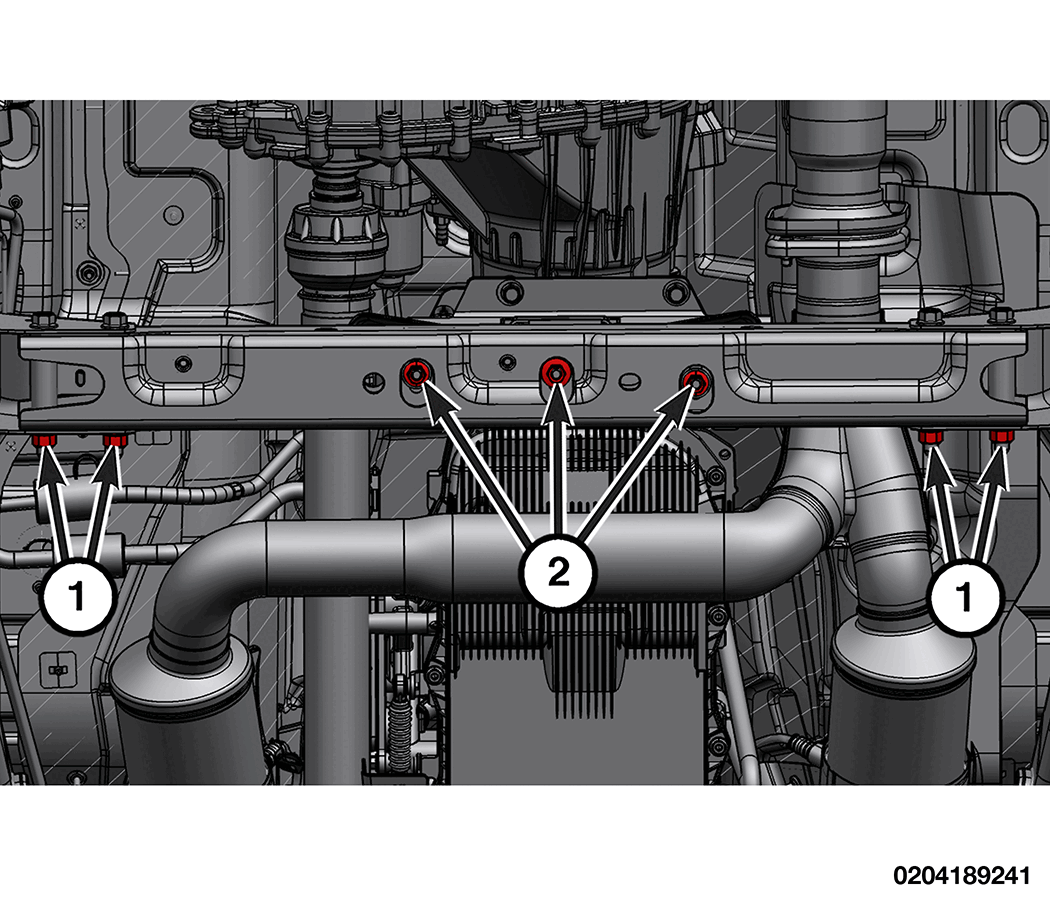

GC0205650Courtesy of CHRYSLER GROUP, LLC
CALLOUT DESCRIPTION SPECIFICATION COMMENT
1 Transmission Crossmember Nuts 80 N.m (59 Ft. Lbs.) -
2 Transmission Mount Crossmember Nuts 48 N.m (35 Ft. Lbs.) -

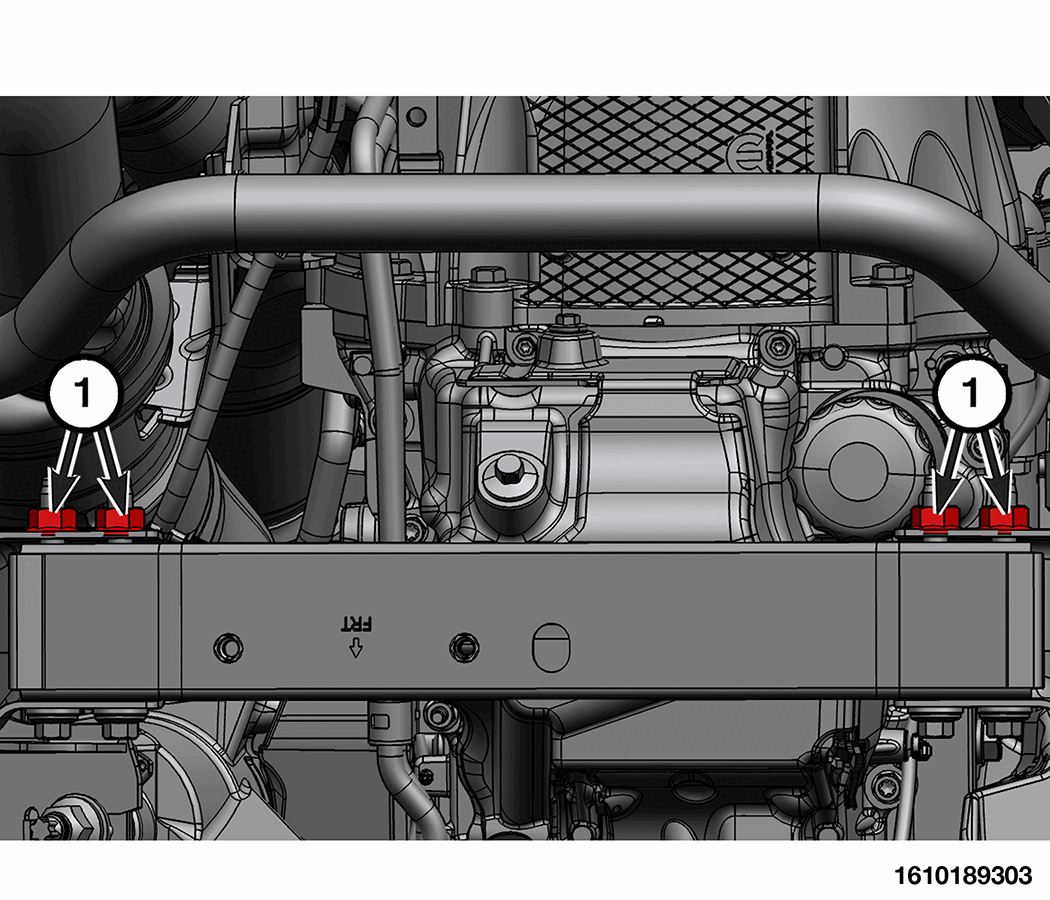

GC0205224Courtesy of CHRYSLER GROUP, LLC
CALLOUT DESCRIPTION SPECIFICATION COMMENT
1 Lower Control Arm Crossmember Nuts 105 N.m (77 Ft. Lbs.) -
