Lower Control Arm CROSSMEMBER: Notes

REMOVAL

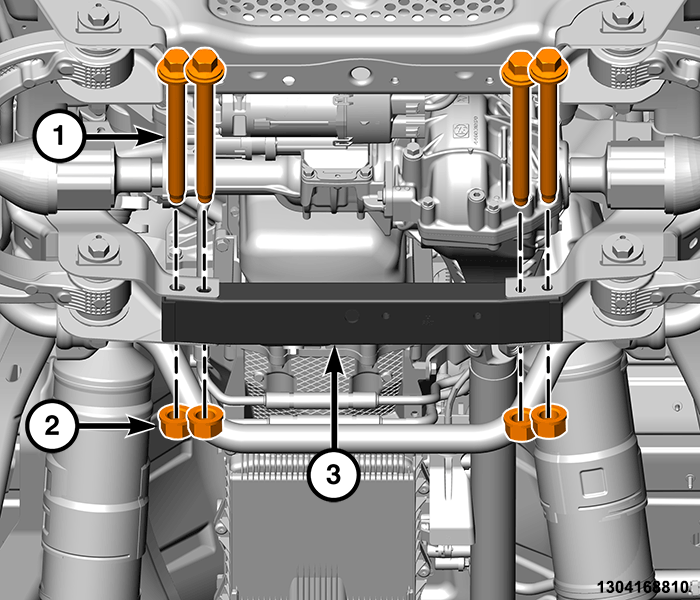

Courtesy of CHRYSLER GROUP, LLC

1 - Lower Control Arm Crossmember Bolts

2 - Lower Control Arm Crossmember Nuts

3 - Lower Control Arm Crossmember

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the lower control arm crossmember nuts.
Remove the lower control arm crossmember bolts and remove the lower control arm crossmember.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
