Instrument Panel: Notes

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM .
2. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .

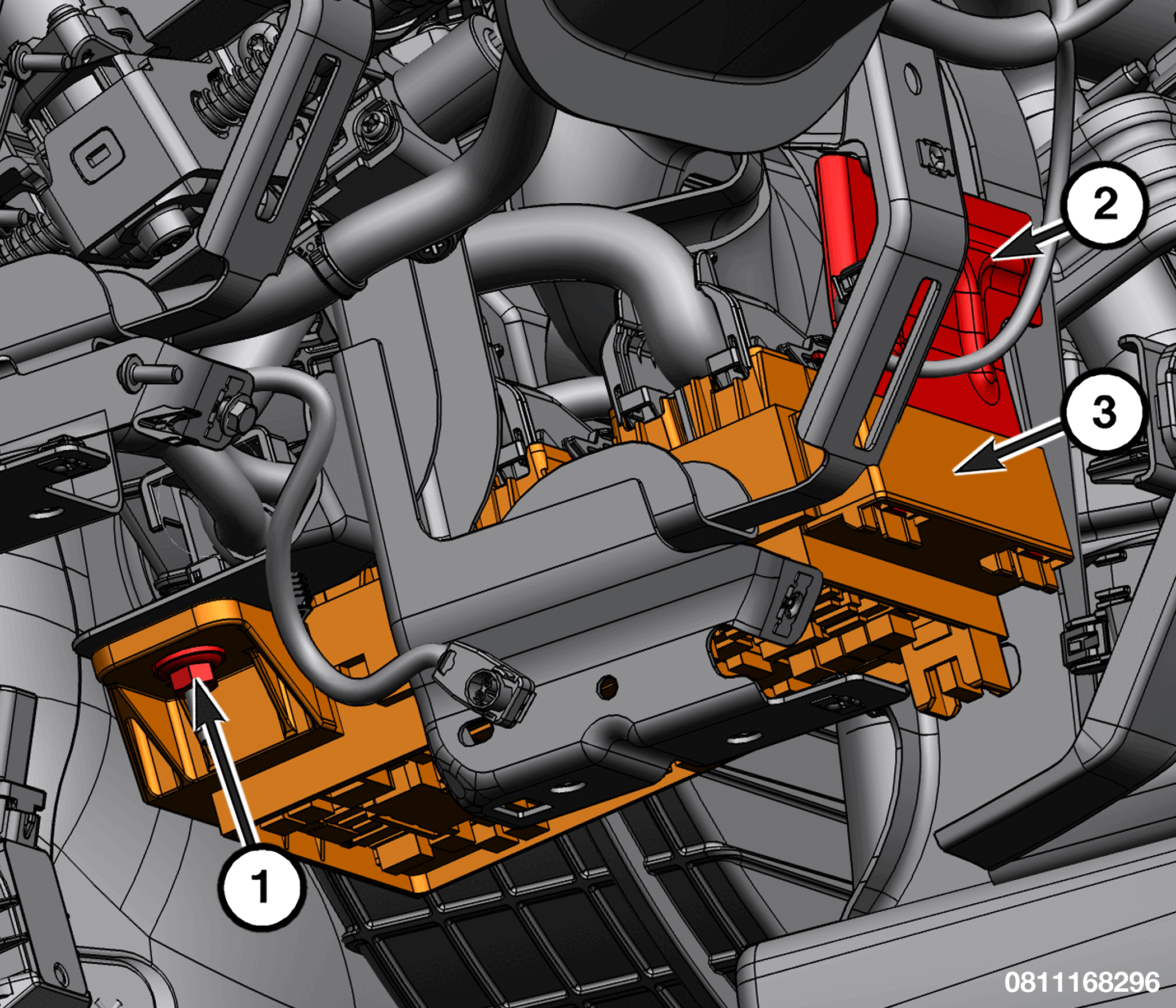

   Courtesy of CHRYSLER GROUP, LLC

   1 - Power Distribution Center Nut

   2 - Retaining Bracket

   3 - Instrument Panel Power Distribution Center

3. Remove the nut that secures the Power Distribution Center (PDC) and slide it off the retaining bracket.

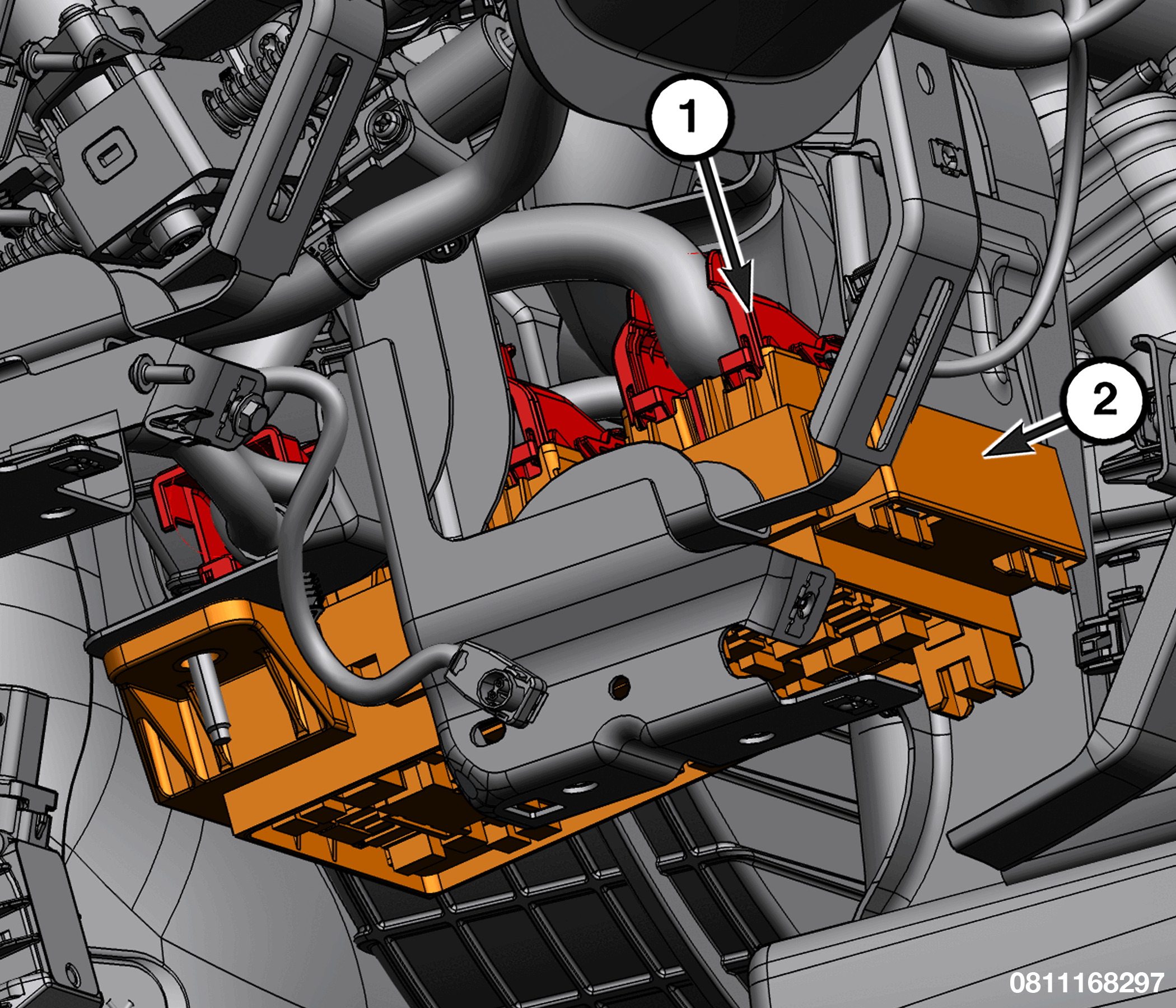

   Courtesy of CHRYSLER GROUP, LLC

   1 - Wire Harness Connectors

   2 - Instrument Panel Power Distribution Center

4. Pull the PDC away from the studs allowing access and disconnect the wire harness connectors from the PDC.
5. Remove the PDC from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
