Occupant Classification Module
REMOVAL
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, Occupant Classification System (OCS), seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to follow these instructions may result in accidental airbag deployment.
The Occupant Classification System (OCS) is used only in the passenger side front seat of vehicles manufactured for domestic markets. Vehicles manufactured for export markets use the Occupant Detection Sensor (ODS) instead of the OCS on the passenger side front seat.
All of the components of the OCS including the Occupant Classification Module (OCM), the seat bladder, the plastic toppers, the passenger seat cushion foam, the electronic pressure sensor, the OCS pressure hose, and the heat mat and vent bag (if equipped), are serviced only as a factory-calibrated and assembled unit. Any time any one of these components requires replacement for any reason, the entire calibrated OCS must be replaced and re-zeroed. Refer to the appropriate diagnostic information.
If ONLY the seat trim requires replacing and no other components are compromised. Replace the trim and follow the OCS re-zeroing process. Refer to the appropriate diagnostic information.
- Remove the passenger front seat from the vehicle. Refer to SEAT, FRONT, REMOVAL AND INSTALLATION
.

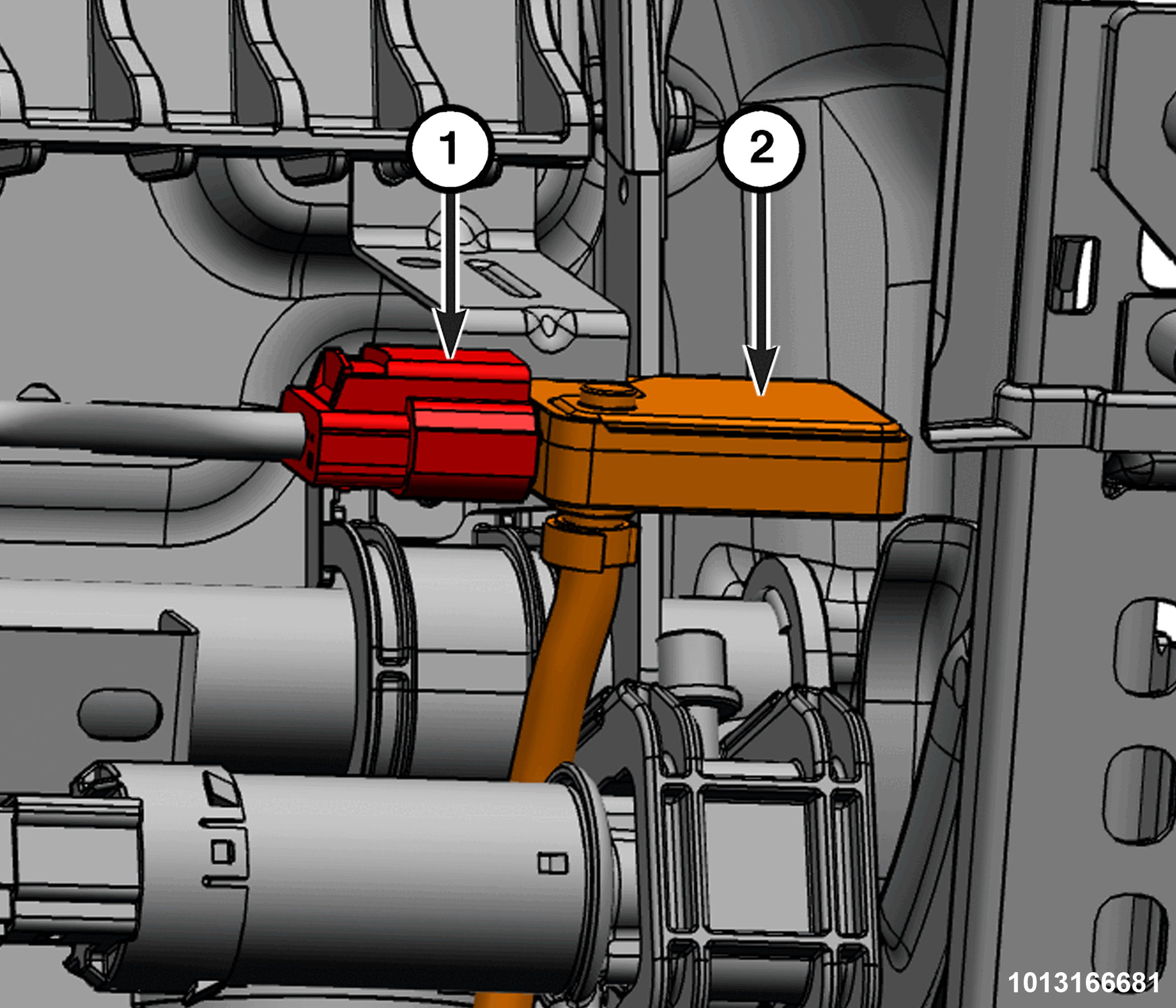

1 - Wire Harness Connector 2 - OCM - Disconnect the seat wire harness connector from the OCM beneath the outboard front corner of the seat cushion pan.
- Using a small flat-bladed screwdriver or a small pick tool, carefully pry the latch tab integral to the OCM electrical receptacle to release it from the blade of the mounting bracket beneath the outboard front corner of the seat cushion.NOTE:
If equipped with heated seats, vented seats or both, remove the heat mat and vent bag with the seat cushion.
- Remove the seat trim and foam seat cushion from the passenger front seat. Refer to COVER, SEAT CUSHION, FRONT, REMOVAL AND INSTALLATION
.

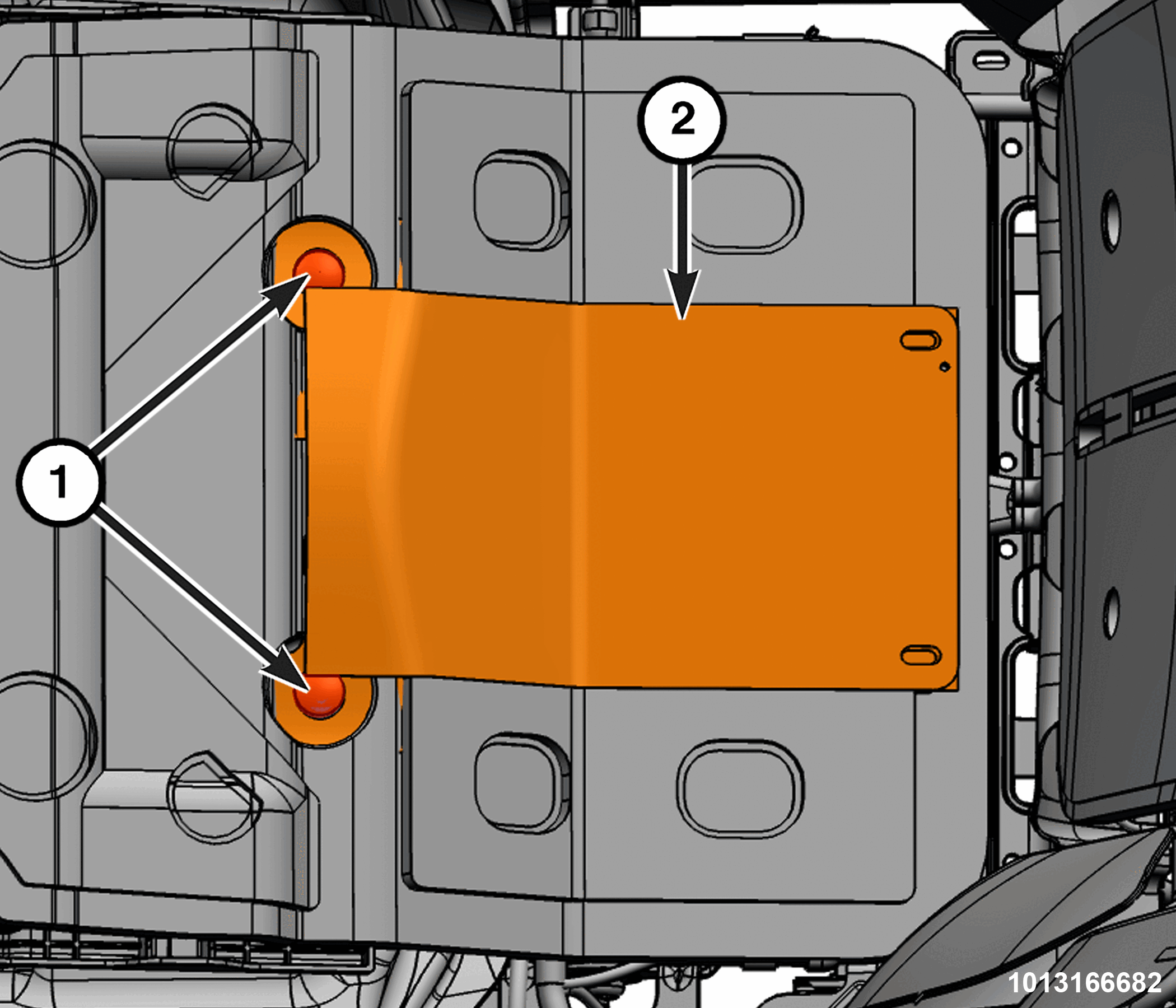

1 - Push-Pin Fasteners 2 - Plastic Toppers - Remove the two push-pin plastic fasteners that secure the seat bladder and the plastic toppers to the seat cushion pan.
- Remove the seat bladder, the plastic toppers, the pressure hose and the OCM with integral electronic pressure sensor from above the front seat cushion as a unit.
- If any of the OCS components requires replacement, discard the entire OCS unit. Replace it with the entire contents of the factory-calibrated service replacement package, which includes an OCM with integral and internal electronic pressure sensor, a pressure hose, the seat bladder, the plastic toppers, the heat mat (if equipped), the vent bag (if equipped) and the seat cushion foam. NOTE:
If the vehicle is equipped with heated seats, vented seats or both, the proper OCM service kit is boxed together.
INSTALLATION
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
- If the vehicle is equipped with heated seats, vented seats or both, the proper OCM kit will come with these components attached to the new seat cushion foam.
- Position the seat bladder, the plastic toppers, the OCS pressure hose and the OCM with integral electronic pressure sensor to the top of the front seat cushion pan as a unit. Lift the back of the seat bladder far enough to access and insert the OCM and pressure hose between the seat cushion springs to the underside of the seat cushion. Be certain the pressure hose is not pinched or kinked.
- Collect ALL of the OCS components, including the seat cushion foam assembly replaced during this repair procedure. Insure ALL parts are the original equipment parts. Return ALL removed parts to the Mopar Quality Center / QEC for root cause evaluation. If the original equipment removed parts have not ALL been replaced, return to Step 1 and complete all steps of the repair process.
- From the underside of the seat, snap the OCM to the blade of the mounting bracket beneath the outboard front corner of the seat. Be certain the OCM has not been rotated in a fashion that puts torsion on the hose, this will cause the hose to kink.
- Do not connect the negative battery cable at this time. The SRS Verification Test procedure should be performed following service of any SRS component. Refer to SUPPLEMENTAL RESTRAINT SYSTEM VERIFICATION TEST .
- Following successful completion of the SRS Verification Test procedure, perform the OCM System Verification Test procedure found in the diagnostic scan tool under Miscellaneous Functions. Refer to the appropriate diagnostic procedures.
