Second Row Outboard - Right: Notes

REMOVAL

WARNING:

To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

  1. Remove the second row seat cushion. Refer to COVER, SEAT CUSHION, SECOND ROW, REMOVAL AND INSTALLATION .
  2. Remove the second row right outboard buckle bolt from the buckle anchor.
    NOTE:

    Use a long reach T-55 torxs bit to clear the floor stud.

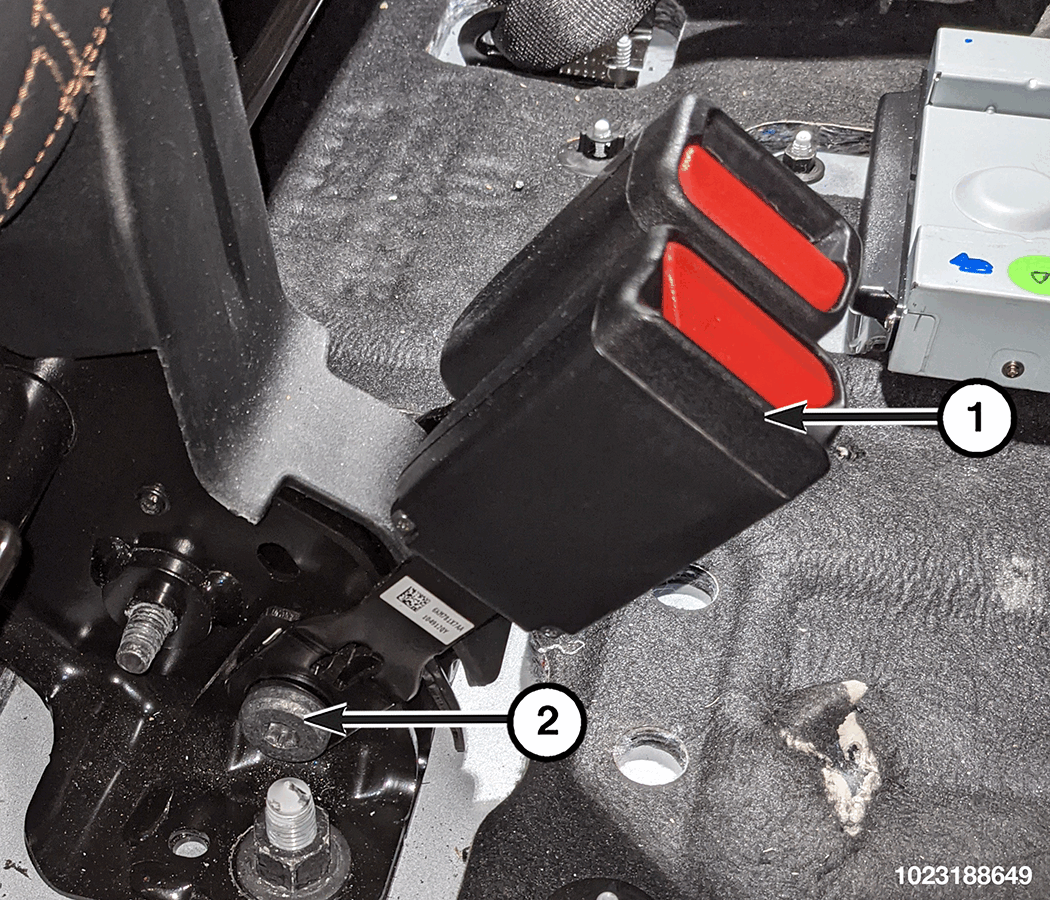

    GC0203549Courtesy of CHRYSLER GROUP, LLC
    1 - Buckle
    2 - Second Row Right Outboard Buckle Bolt
  3. Remove the buckle from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
