Digital Audio Broadcasting Antenna Module

NOTE:

The digital audio broadcast antenna is screened to the left quarter glass and is serviced only with the quarter glass. Refer to GLASS, REMOVAL AND INSTALLATION .

REMOVAL

Remove the upper left D-pillar trim panel. Refer to PANEL, D-PILLAR TRIM, REMOVAL AND INSTALLATION .
Disconnect the digital audio broadcast antenna jumper cable and the wire harness connector(s) from the digital audio broadcast antenna module.

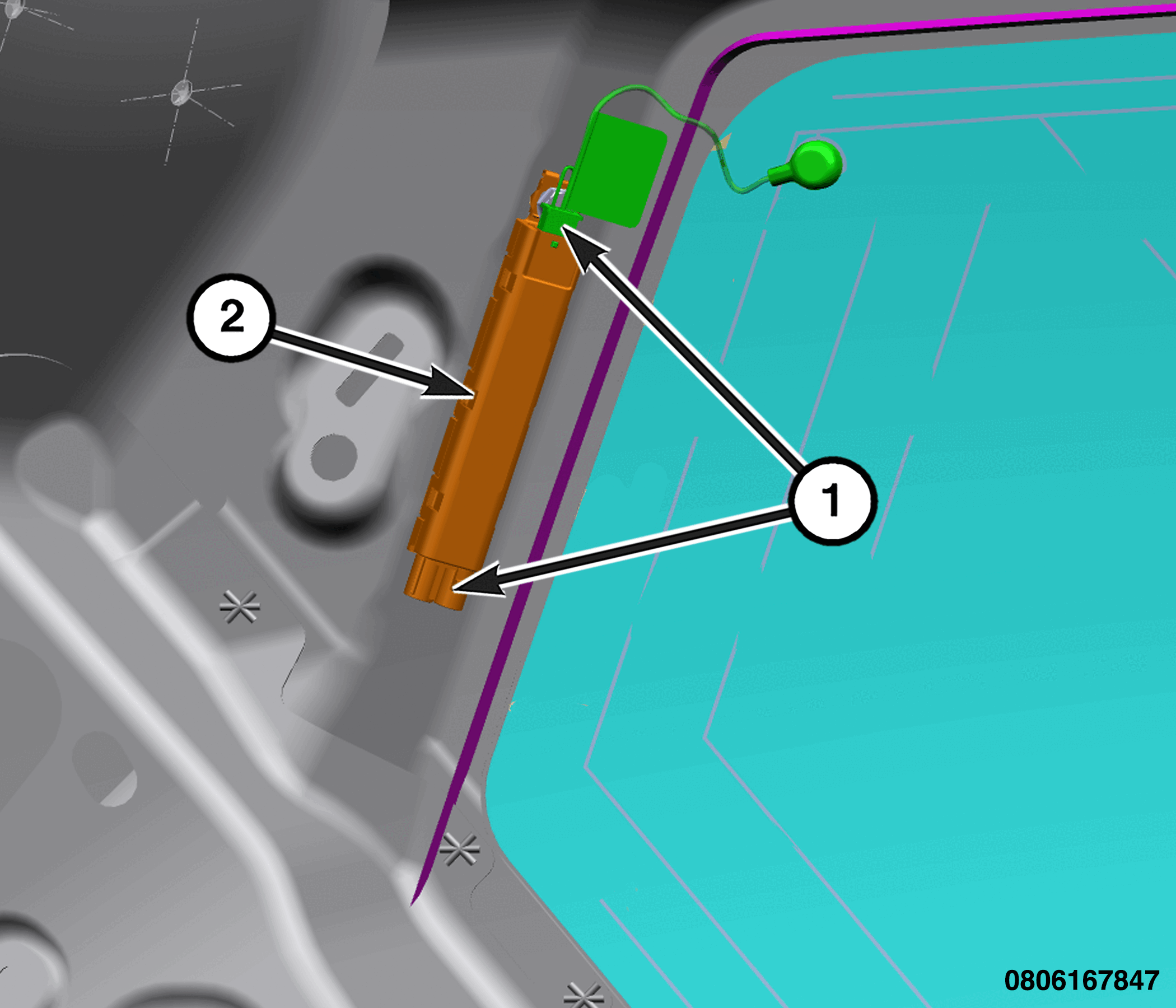

Courtesy of CHRYSLER GROUP, LLC

1 - Wire Harness Connector(s)

2 - Digital Audio Broadcast Antenna Module
Remove the fastener, slide out the top of the digital audio broadcast antenna module and lower to disengage the lower hook from the bottom of the module. Remove the digital audio broadcast antenna module from the left inner quarter panel.

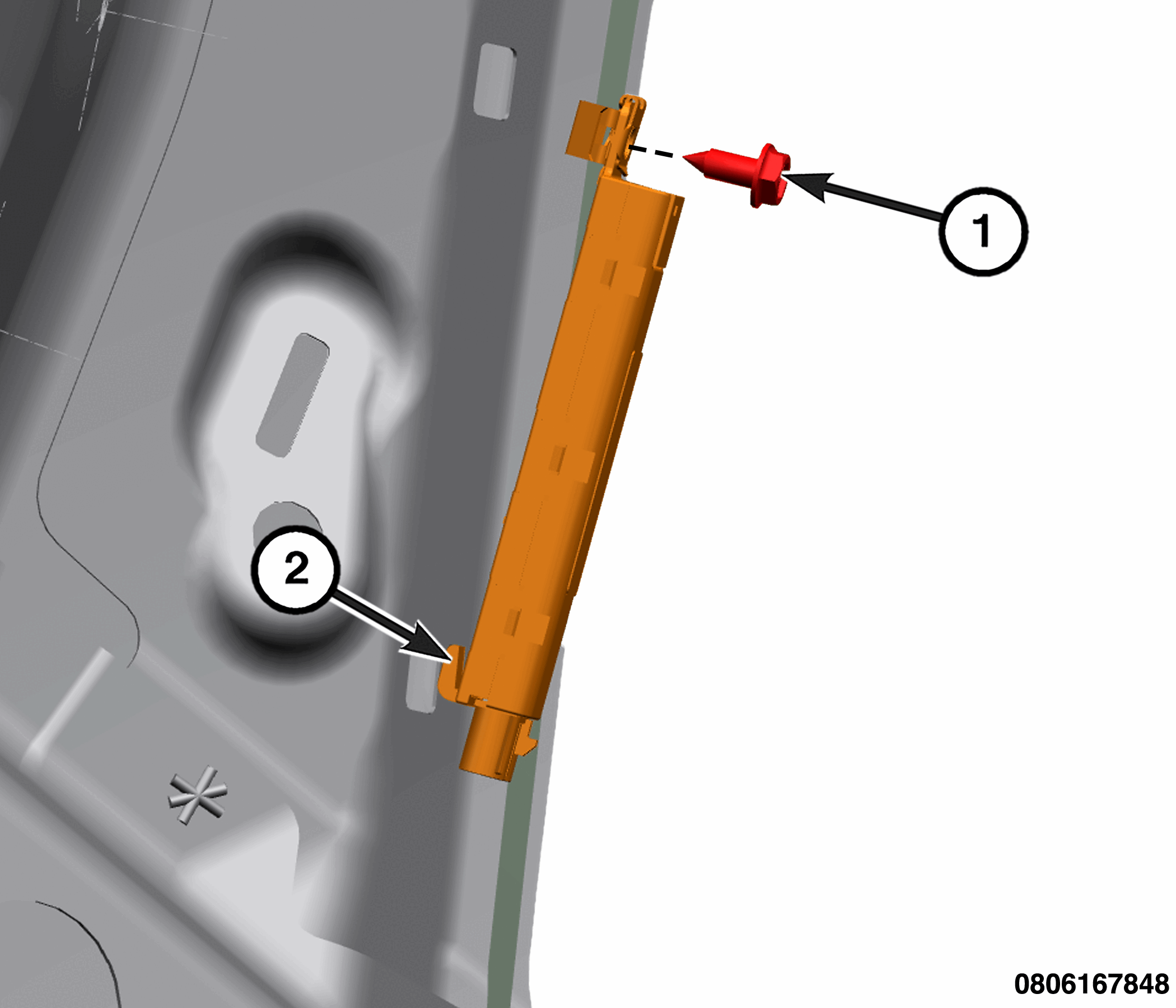

Courtesy of CHRYSLER GROUP, LLC

1 - Fastener

2 - Lower Hook

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

Tighten the fastener securely.
