Set Condition
- Condition one: Map and ELCM Pressure Sensor difference of 2 kPa for 60.0 seconds.
- Condition two will fail if any of the following are true:

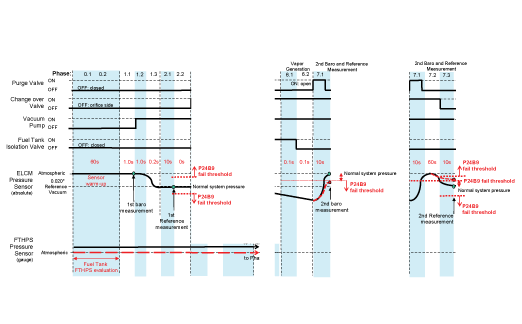

- The PCM detects low flow during the first 0.20" Reference Orifice check.
- The PCM detects high flow during the first 0.20" Reference Orifice check.
- The PCM determines that the ELCM Pressure Sensor signal is not between the minimum and maximum calibrated thresholds, based on BARO (see chart below) , during the first 0.20" Reference Orifice check.
- The PCM determines that the ELCM Pressure Sensor signal is not between the minimum and maximum calibrated thresholds, based on BARO (see chart below) , during the second 0.20" Reference Orifice check.
- The difference between the two reference checks is more than 0.5 kPa.
- The difference between the two BARO reference checks is more than 1.0 kPa.
| Readings Taken | psi (kpa) | psi (kpa) | psi (kpa) | psi (kpa) |
|---|---|---|---|---|
| Atmospheric Pressure (BARO) | 10.15 (70) | 11.6 (80) | 13.05 (90) | 14.5 (100) |
| 0.20" Reference Pressure Upper Limit | -0.585 (-4.04) | -0.599 (-4.13) | -0.61 (-4.21) | -0.619 (-4.27) |
| 0.20" Reference Pressure Lower Limit | -0.14 (-0.95) | -0.15 (-1.04) | -0.165 (-1.14) | -0.18 (-1.24) |
