EVIC Switch
REMOVAL
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.
- Disconnect and isolate the negative battery cable(s). Refer to: BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM .
- Remove the remote radio switch. Refer to SWITCH, REMOTE RADIO, REMOVAL AND INSTALLATION .
- Remove the steering wheel. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .
- Remove the fasteners securing the steering wheel back cover to the steering wheel, then remove the steering wheel back cover from the steering wheel.

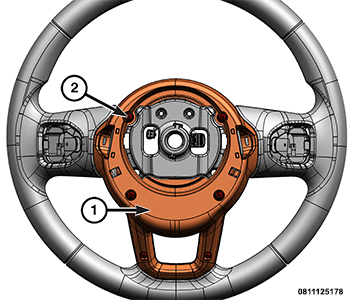

1 - Back Cover 2 - Fastener - Pull the steering wheel bezel away from the steering wheel and disconnect the cruise control switch and Electronic Vehicle Information Center (EVIC) switch wire harness connectors, then remove the bezel with switches.
- Remove the fasteners securing the EVIC switch to the bezel and remove the EVIC switch from the bezel.

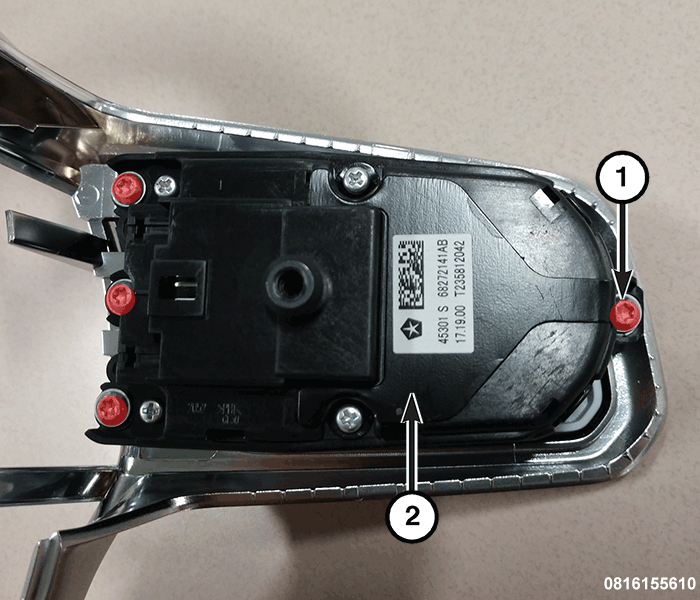

1 - Fastener 2 - EVIC Switch
INSTALLATION
Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
- Tighten the fasteners securely.
