Center Console Power Outlet

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to: BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM .
2. Remove the floor console end cap. Refer to: CONSOLE, FLOOR, END CAP, REMOVAL AND INSTALLATION .
3. Disconnect the wire harness connectors from the 115 volt power outlet.

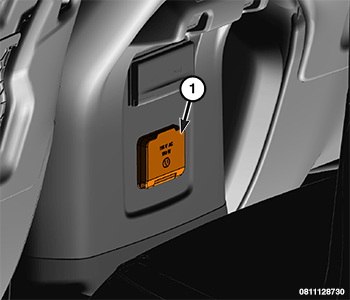

   Courtesy of CHRYSLER GROUP, LLC

   1 - Outlet

4. Push in on the four tabs to release the 115 volt power outlet from the panel.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
