Torque Specifications - Vacuum Pump
Torque Specifications - Vacuum Pump
Courtesy of CHRYSLER GROUP, LLC

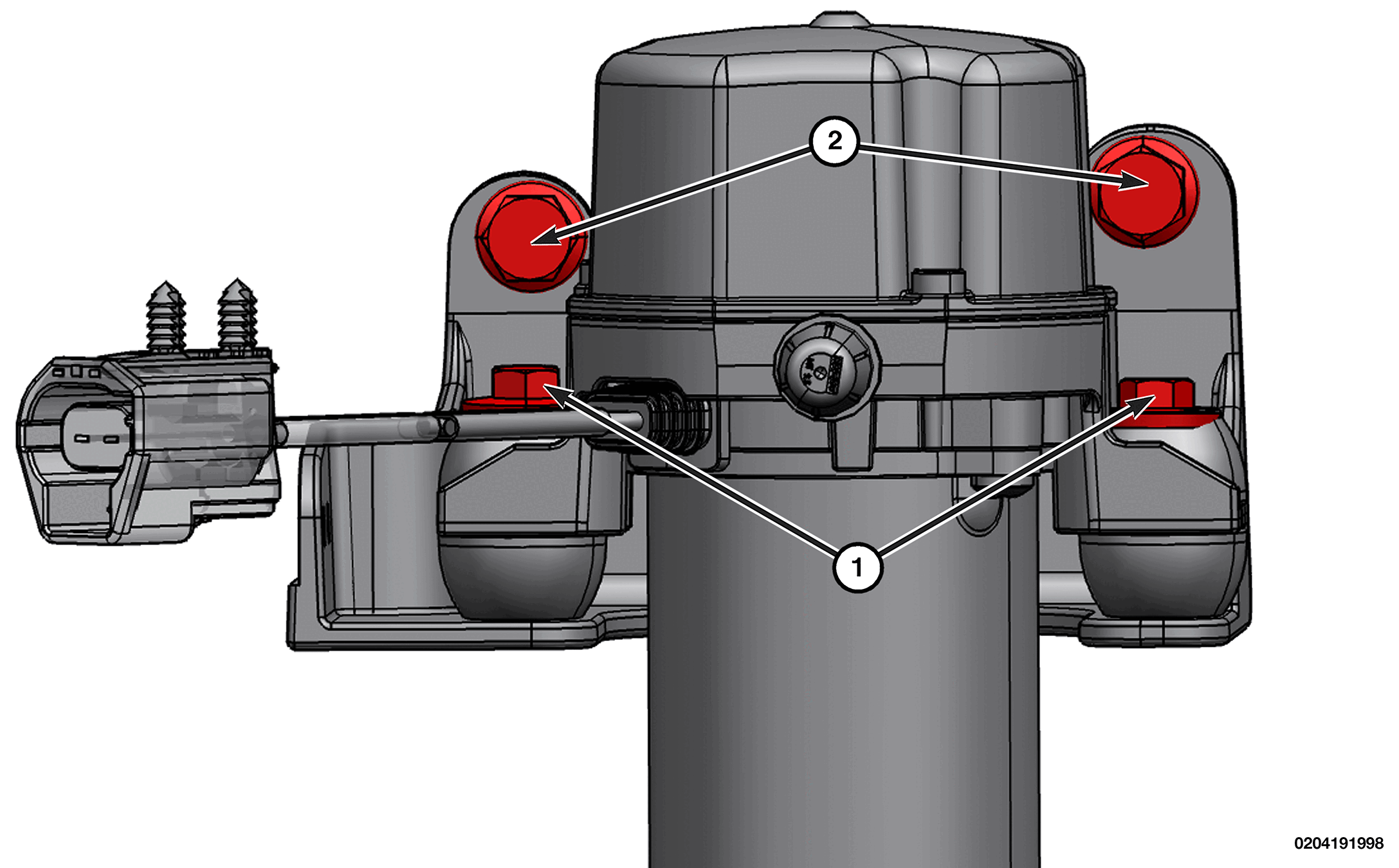

CALLOUT
DESCRIPTION
SPECIFICATION
COMMENT
1
Vacuum Pump Bolts
8 N. m (71 In. Lbs.)
-
2
Vacuum Pump Bracket Bolts
25 N. m (18 Ft. Lbs.)
-
Courtesy of CHRYSLER GROUP, LLC
