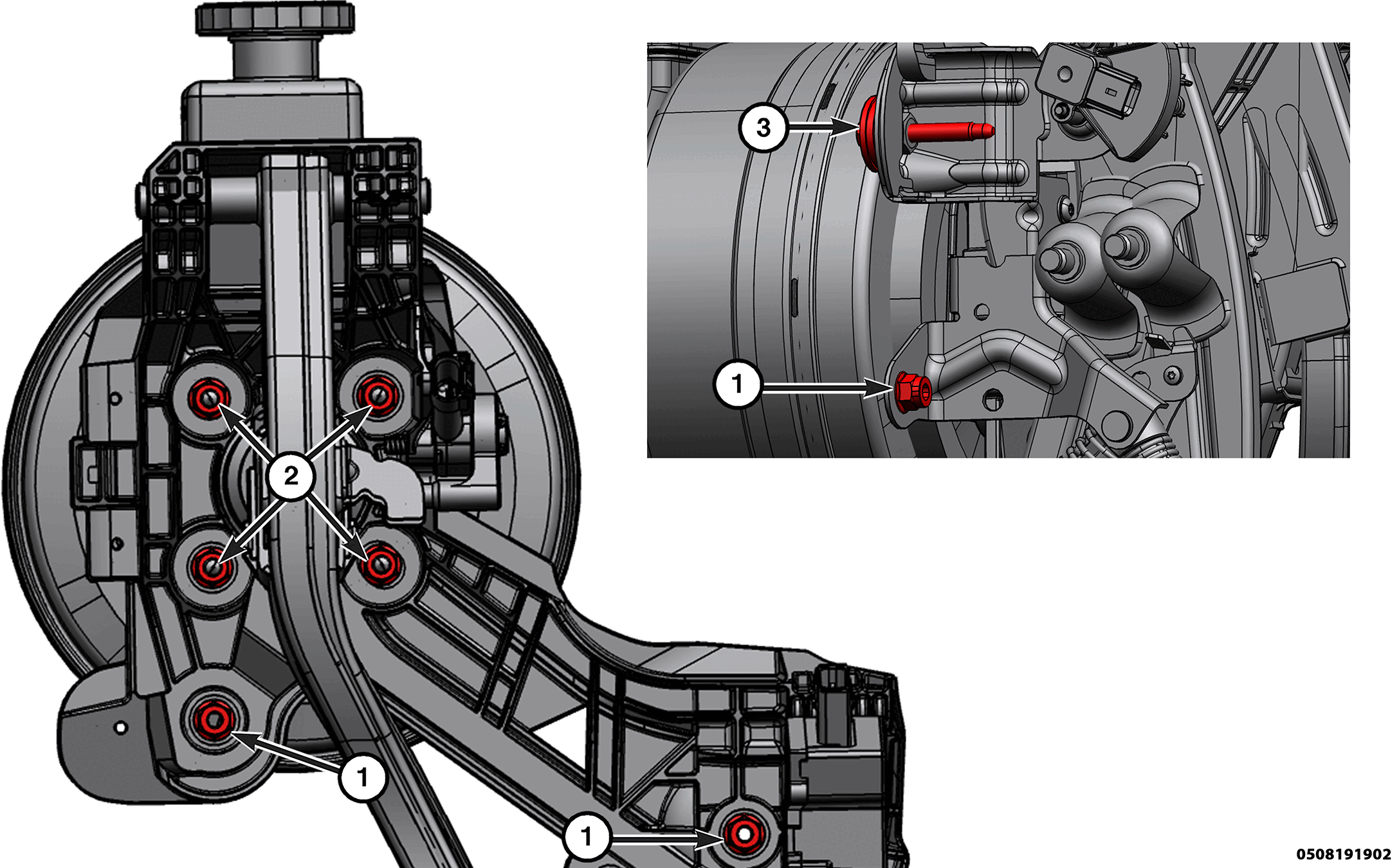

Torque Specifications - Brake Pedal

Courtesy of CHRYSLER GROUP, LLC

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Pedal Sled Nut	30 N. m (22 Ft. Lbs.)	-
2	Brake Booster Nuts	30 N. m (22 Ft. Lbs.)	-
3	Clutch Pedal Bolt	24 N. m (18 Ft. Lbs.)	-
