Torque Specifications - Brake Lines

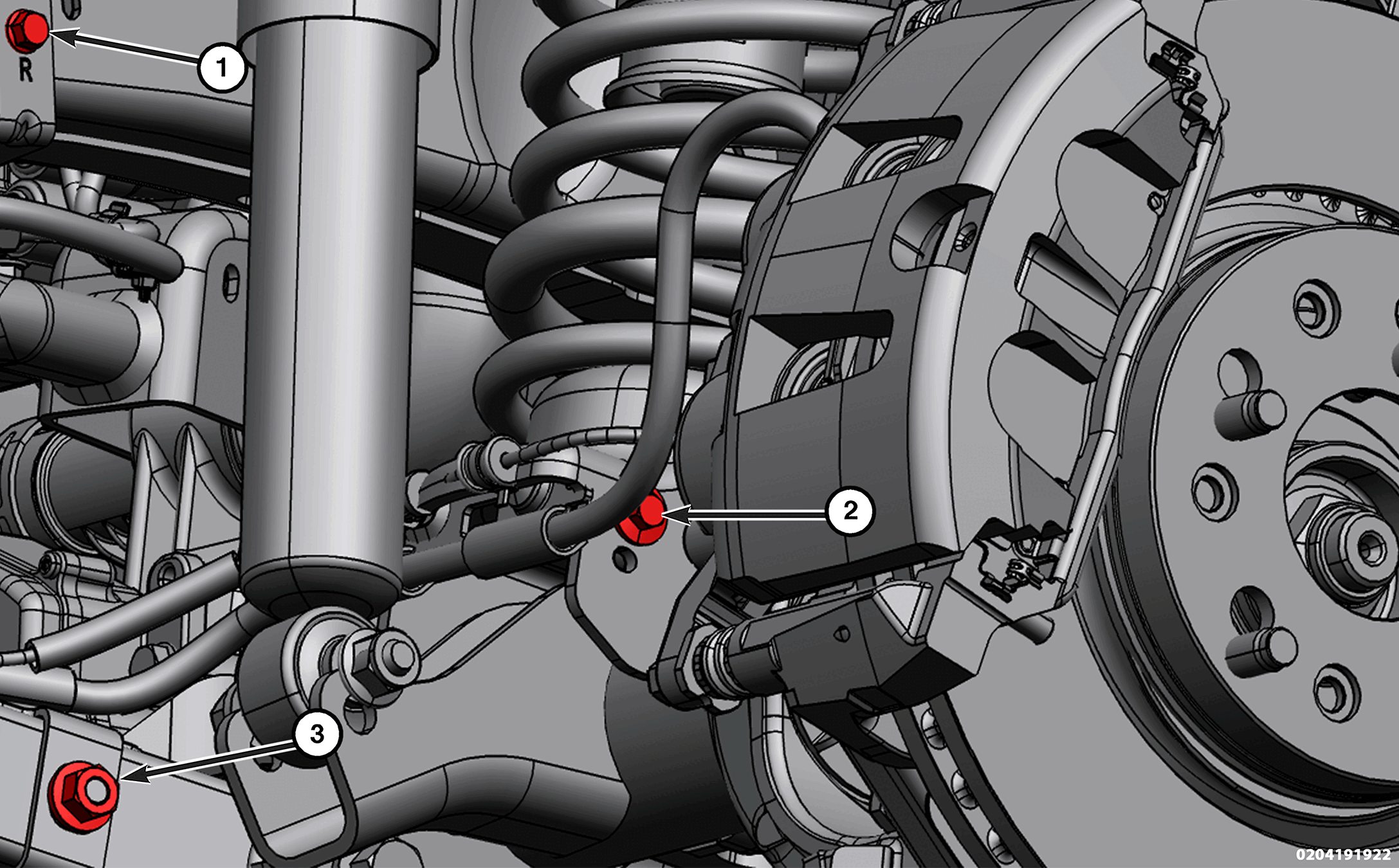

GC0205916

Courtesy of CHRYSLER GROUP, LLC

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Front Wheel Speed Sensor Bracket Bolt	30 N. m (22 Ft. Lbs.)	-
2	Front Brake Hose Axle Bolt	8 N. m (71 Ft. Lbs.)	-
3	Front Brake Hose Lower Control Arm Nut	18 N. m (13 Ft. Lbs.)	-

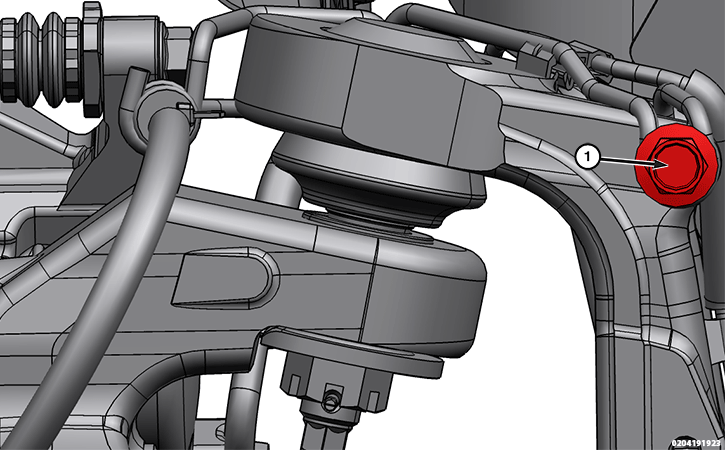

GC0205909

Courtesy of CHRYSLER GROUP, LLC

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Front Wheel Speed Sensor Support Bolt (Wire Form)	25 N. m (18 Ft. Lbs.)	-
	Front Brake Line to Rear Brake Line Flare Nuts	20 N. m (15 Ft. Lbs.)	-
	Front Brake Hose to Axle	11 N. m (8 In. Lbs.)	-
	Front Brake Hose Bracket Nut	18 N. m (13 Ft. Lbs.)	-
	Front Brake Line to Hose Nut	20 N. m (15 Ft. Lbs.)	-
	Front Brake Hose to Frame Bolt	11 N. m (8 Ft. Lbs.)	-
	Rear Brake Line Junction Flare Nut	18 N. m (13 Ft. Lbs.)	-
	Rear Brake Hose Bracket Nut	7 N. m (62 In. Lbs.)	-
	Right Rear Brake Line Tube to Tube Connection	35 N. m (26 Ft. Lbs.)	-
	Rear Brake Hose Axle Bolt	28 N. m (21 Ft. Lbs.)	-
	Rear Brake Line to Hose Nut	20 N. m (15 Ft. Lbs.)	-

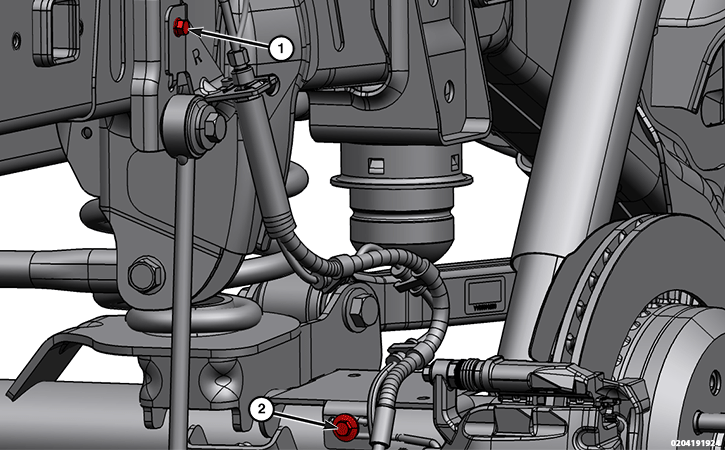

GC0205895

Courtesy of CHRYSLER GROUP, LLC

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Front Wheel Speed Sensor Bracket Bolt	30 N. m (22 Ft. Lbs.)	-
2	Brake Hose Frame Bolt	11 N. m (8 Ft. Lbs.)	-
