Diagnostic Test

  1. ANTENNA INSPECTION
    1. Using Service Information locate and verify the antenna is on the vehicle.
    2. Visually inspect the Antenna for damage.

      Is the antenna missing or damaged?

      Yes

      • Replace the Cellular Antenna in accordance with the Service Information.
      • Perform the BODY VERIFICATION TEST. Refer to: BODY VERIFICATION TEST .

      No

      • Go To  2
  2. CHECK THE ANTENNA CONNECTIONS
    1. Turn the ignition off.
    2. Disconnect the Cellular Antenna connector at the Antenna.
    3. Disconnect the Cellular Antenna connector at the rear of the Radio.
    4. Inspect both of the Cellular Antenna connections and verify the Antenna is torqued to specification.

      Were the antenna connections clean and torqued to specification?

      Yes

      • Go To  3

      No

      • Clean the Cellular Antenna connection(s) / torque to specification as necessary.
      • Perform the BODY VERIFICATION TEST. Refer to: BODY VERIFICATION TEST .
  3. RADIO
    NOTE:

    Antenna reception testing must be done outside and away from man made structures or natural features to ensure all signals are not obstructed.

    1. Connect the special tool # 9977-6-13, (Long RF RG-58 Fakra Adapter) and special tool # 9977-6-CELL-LTE, (Cellular Antenna Diagnostic Adapter) to the Cellular Antenna connection on the back of the Radio.
    2. Place the test antenna base on the roof of the vehicle.
    3. Turn the ignition on.
    4. Drive the vehicle outside to an un-obstructed area.
    5. Turn the Radio on.

      Is the reception still poor or not available?

      Yes

      • Replace the Radio in accordance with the Service Information.
      • Perform the BODY VERIFICATION TEST. Refer to: BODY VERIFICATION TEST .

      No

      • Go To  4
  4. ANTENNA
    NOTE:

    Antenna reception testing must be done outside and away from man made structures or natural features to ensure all signals are not obstructed.

    1. Turn the ignition off.
    2. Reconnect the Radio C7 harness connector.
    3. Disconnect the Cellular Antenna harness connector.
    4. Connect the special tool # 9977-6-CELL-LTE, (Cellular Antenna Diagnostic Adapter) to the Radio C7 component connector.
    5. Turn the Radio on and select several different known good APP / Cellular functions.

      Is the reception still poor or not available?

      Yes

      • Go To  5

      No

      • Replace the Cellular Antenna in accordance with the Service Information.
      • Perform the BODY VERIFICATION TEST. Refer to: BODY VERIFICATION TEST .
  5. ANTENNA CABLE
    1. Turn the ignition off.

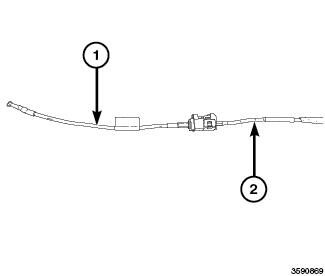

      GC0208679Courtesy of CHRYSLER GROUP, LLC
    2. Connect the special tool # 9977-6-CELL-LTE, (Cellular Antenna Diagnostic Adapter) to the Radio C7 component connector.
    3. Connect the appropriate Jumper ((special tool # 9977-6-4) or (special tool # 9977-6-2)) to the Cellular Antenna harness connector (2) at the Antenna.
    4. Connect the appropriate Adapter ((special tool #9977-6-1) or (special tool # 9977-6-3)) to the Radio C7 harness connector (2).

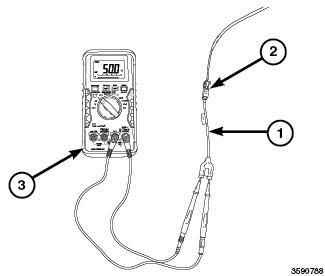

      GC0208680Courtesy of CHRYSLER GROUP, LLC
    5. Measure the resistance across the tool terminals.

      Is the resistance between 47.5 and 52.5 Ohms?

      Yes

      • The source of the poor reception is not caused by the Radio, Cellular Antenna Cable or Cellular Antenna.
      • Perform the BODY VERIFICATION TEST. Refer to: BODY VERIFICATION TEST .

      No

      • Replace the Cellular Antenna Cable in accordance with the Service Information.
      • Perform the BODY VERIFICATION TEST. Refer to: BODY VERIFICATION TEST .
