Stabilizer Bar: Notes

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the front air dam. Refer to AIR DAM, FRONT, REMOVAL AND INSTALLATION .

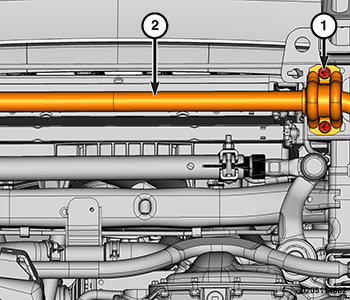

   Courtesy of CHRYSLER GROUP, LLC

   1 - Stabilizer Bar Bolts

   2 - Stabilizer Bar

3. If equipped, disconnect the height sensor rod.
4. Disconnect both stabilizer bar links from the stabilizer bar. Refer to LINK, STABILIZER BAR, REMOVAL AND INSTALLATION .
5. Remove and DISCARD  the four stabilizer bar bolts.
6. Remove the stabilizer bar.
7. Remove the left and right stabilizer bar bushings and retainers from the stabilizer bar.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Install four NEW  stabilizer bar bolts.
