U11EC-00 Lost Communication With Left D-Pillar Impact Acceleration Sensor: Notes

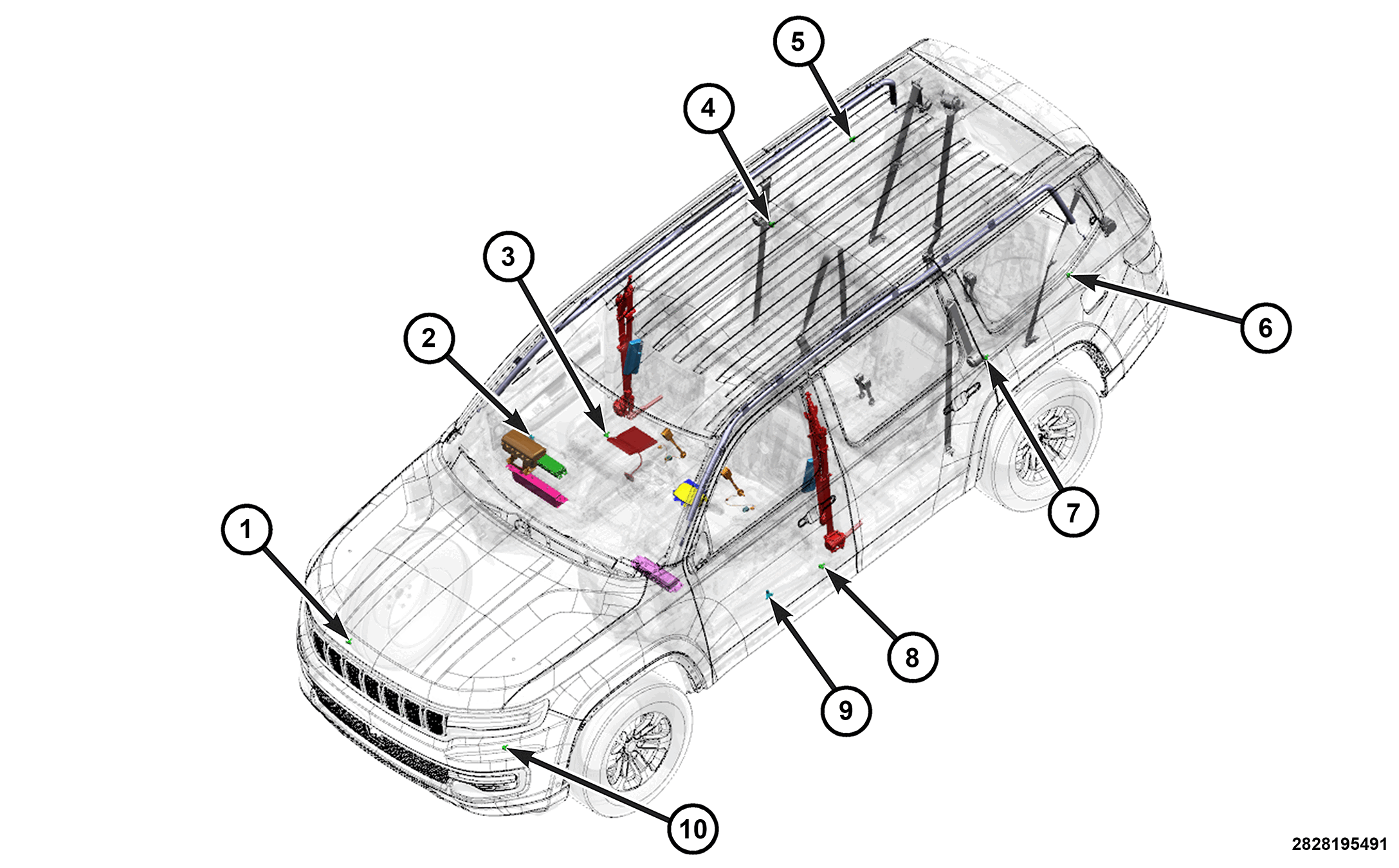

GC0206621Courtesy of CHRYSLER GROUP, LLC
CALL OUT DESCRIPTION
1 Front Impact Sensor- Right
2 Side Impact Pressure Sensor- Right
3 Side Impact Sensor B-Pillar- Right
4 Side Impact Sensor C-Pillar- Right
5 Side Impact Sensor D-Pillar- Right
6 Side Impact Sensor D-Pillar- Left
7 Side Impact Sensor C-Pillar- Left
8 Side Impact Sensor B-Pillar- Left
9 Side Impact Pressure Sensor- Left
10 Front Impact Sensor- Left

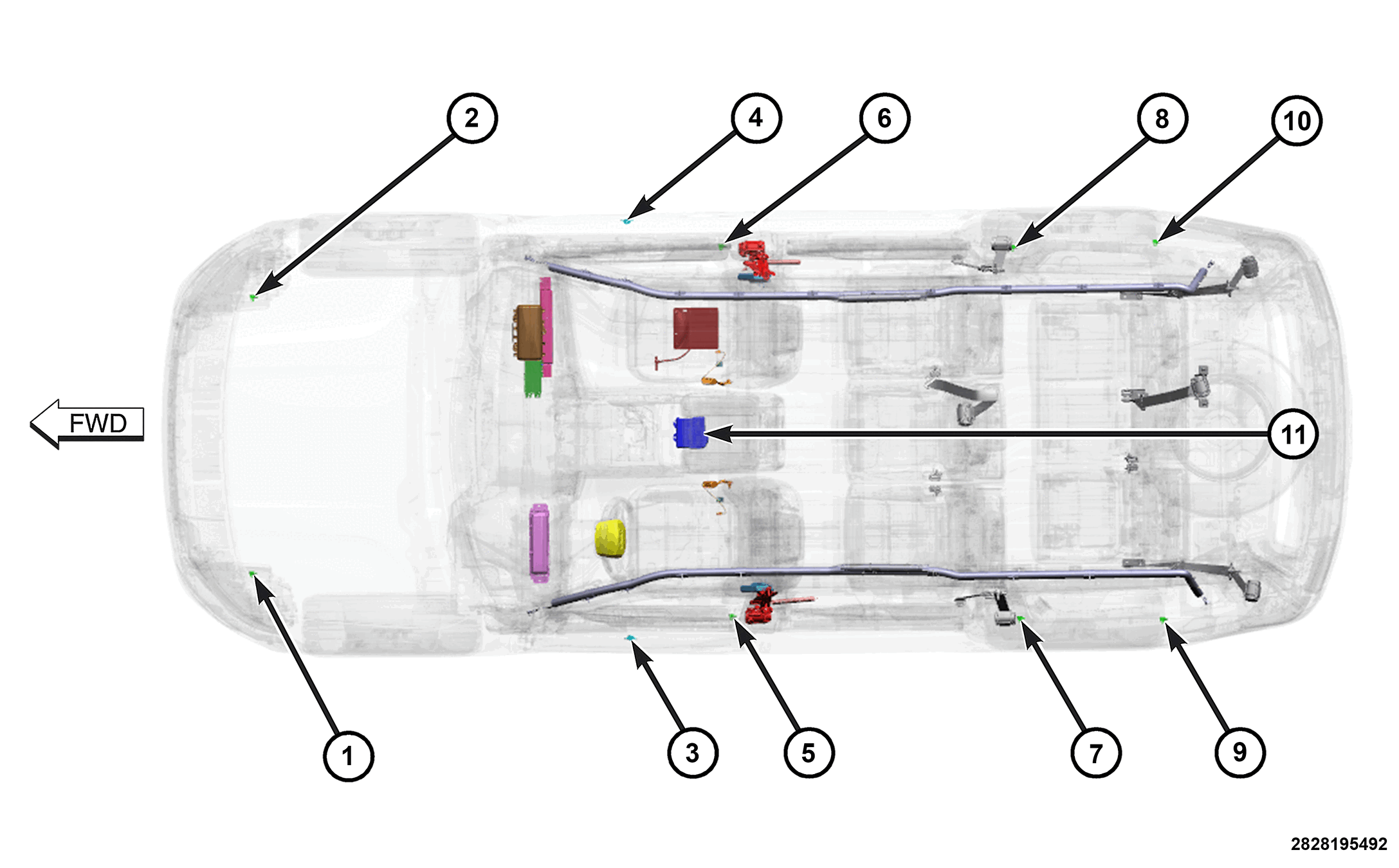

GC0206613Courtesy of CHRYSLER GROUP, LLC
CALL OUT DESCRIPTION
1 Front Impact Sensor- Left
2 Front Impact Sensor- Right
3 Side Impact Pressure Sensor- Left
4 Side Impact Pressure Sensor- Right
5 Side Impact Sensor B-Pillar- Left
6 Side Impact Sensor B-Pillar- Right
7 Side Impact Sensor C-Pillar- Left
8 Side Impact Sensor C-Pillar- Right
9 Side Impact Sensor D-Pillar- Left
10 Side Impact Sensor D-Pillar- Right
11 Occupant Resistant Controller Module
