Description And Operation: Notes
DESCRIPTION

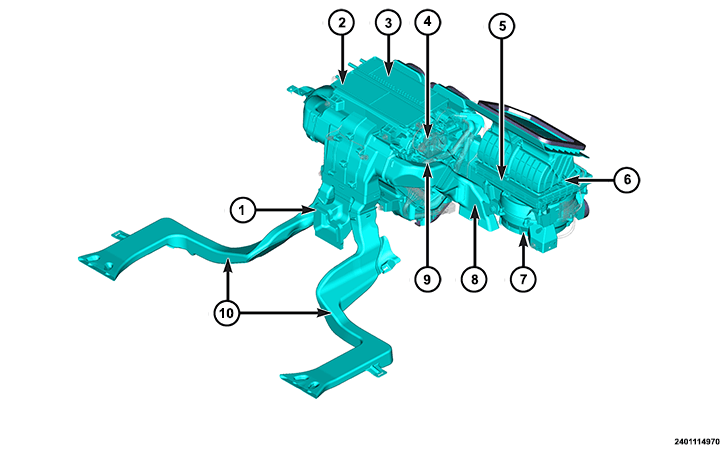

The Heating, Ventilation, and Air Conditioning (HVAC) air distribution system consists of the following components:
COMPONENT INDEX
| 1. | Refer to: CONSOLE DUCT . |
| 2. | Refer to: VENT DUCT AND DOORS - Internal to the HVAC housing. |
| 3. | Refer to: DEFROSTER DUCT . |
| 4. | Refer to: MODE DOOR - Internal to the HVAC housing. |
| 5. | Refer to: CABIN FILTER . |
| 6. | Refer to: RECIRCULATION HOUSING AND DOOR . |
| 7. | Refer to: BLOWER MOTOR . |
| 8. | Refer to: FRONT FLOOR DUCT - right side shown, left side similar. |
| 9. | Refer to: BLEND DOOR - Internal to the HVAC housing. Right side shown, left side similar |
| 10. | Refer to: REAR FLOOR DUCTS . |
OPERATION
