Rear Drive Module

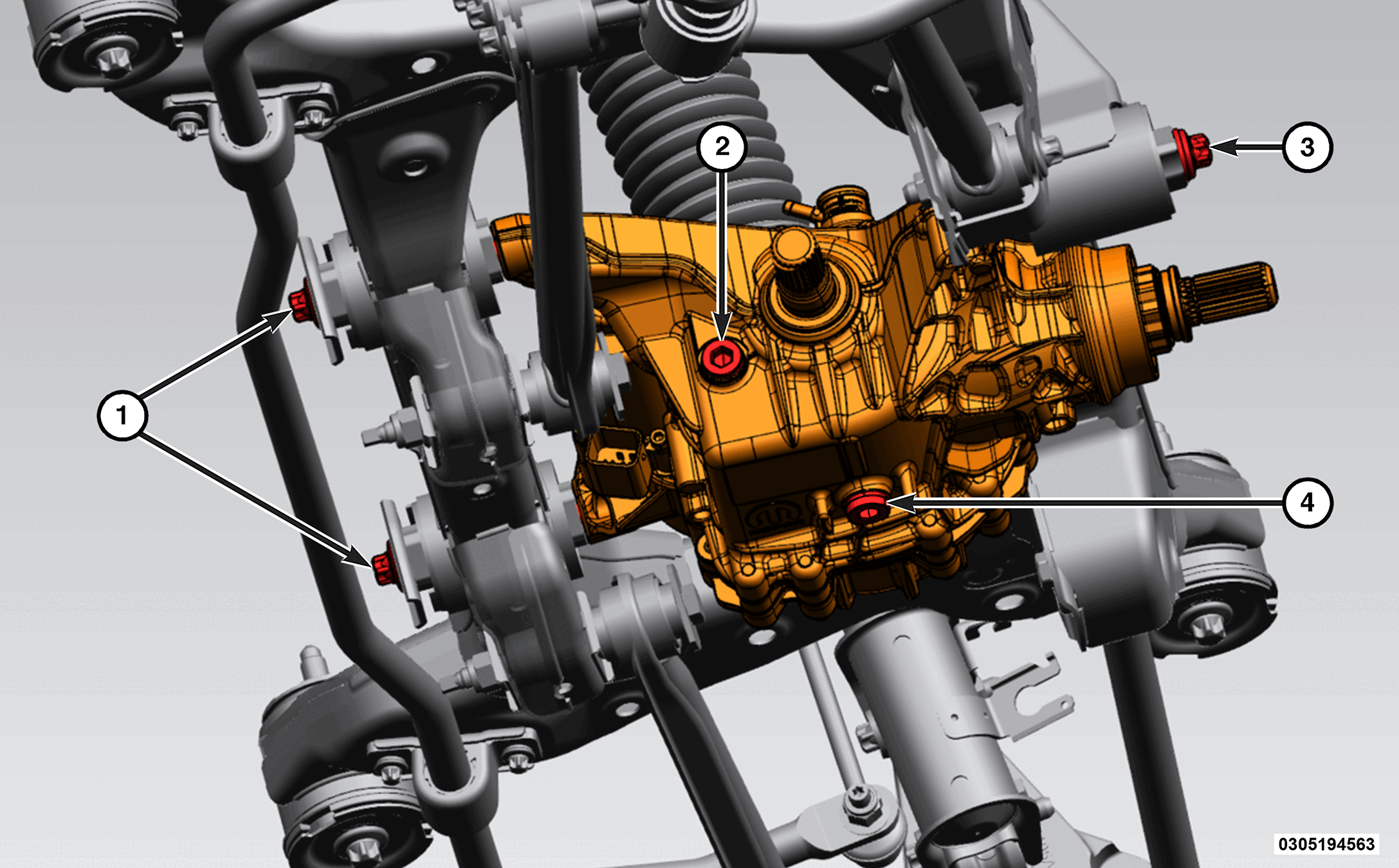

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | RDM Rear Mounting Bolts | 100 N.m + 52° (74 Ft. Lbs. + 52°) | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. |
| 2 | RDM Fill Plug | 60 N.m (44 Ft. Lbs.) | - |
| 3 | RDM Front Mounting Bolt | 110 N.m + 135° (81 Ft. Lbs. + 135°) | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. |
| 4 | Rear Driveline Module (RDM) Drain Plug | 60 N.m (44 Ft. Lbs.) | - |
