Power Distribution: Notes

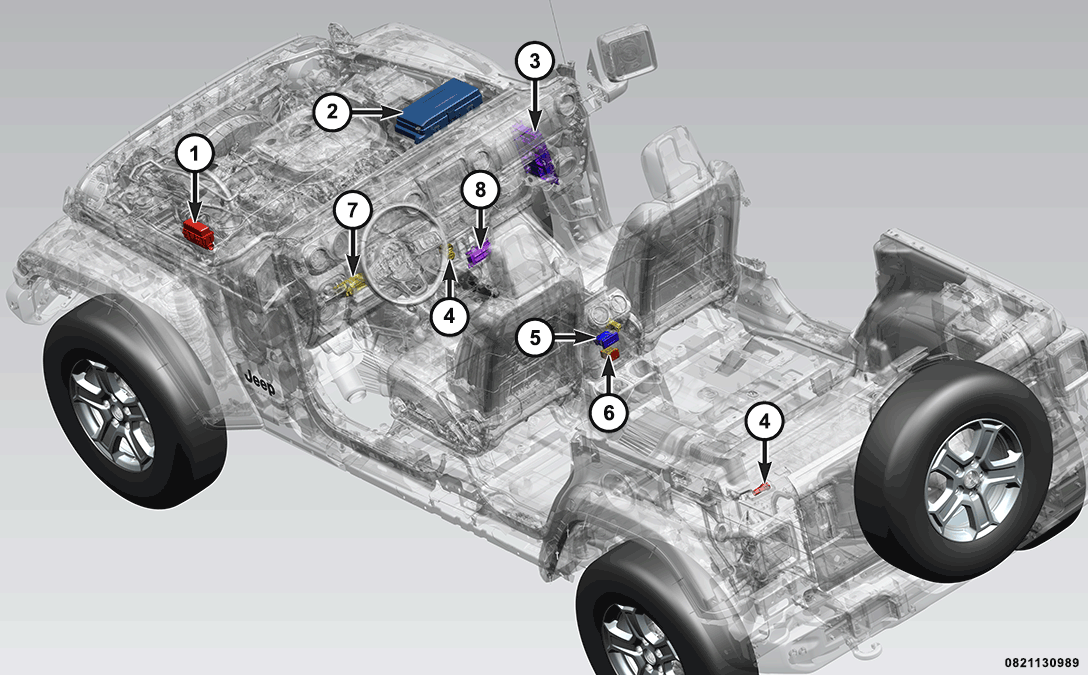

DESCRIPTION
| 1 - Auxiliary Power Distribution Center (Aux PDC) | 5 - Universal Serial Bus (USB) Charge Only Port |
| 2 - Main Power Distribution Center (PDC) | 6 - Power Outlet - 115 volt / 220 volt |
| 3 - Body Control Module (BCM) | 7 - Power Inverter Module (PIM) |
| 4 - Power Outlets - 12 volt | 8 - Auxiliary Switch Bank Module |
| 5 - Rear View Camera (RVC) without Front View Camera (FVC) | 11 - Body Control Module (BCM) |
