Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

LEFT SIDE

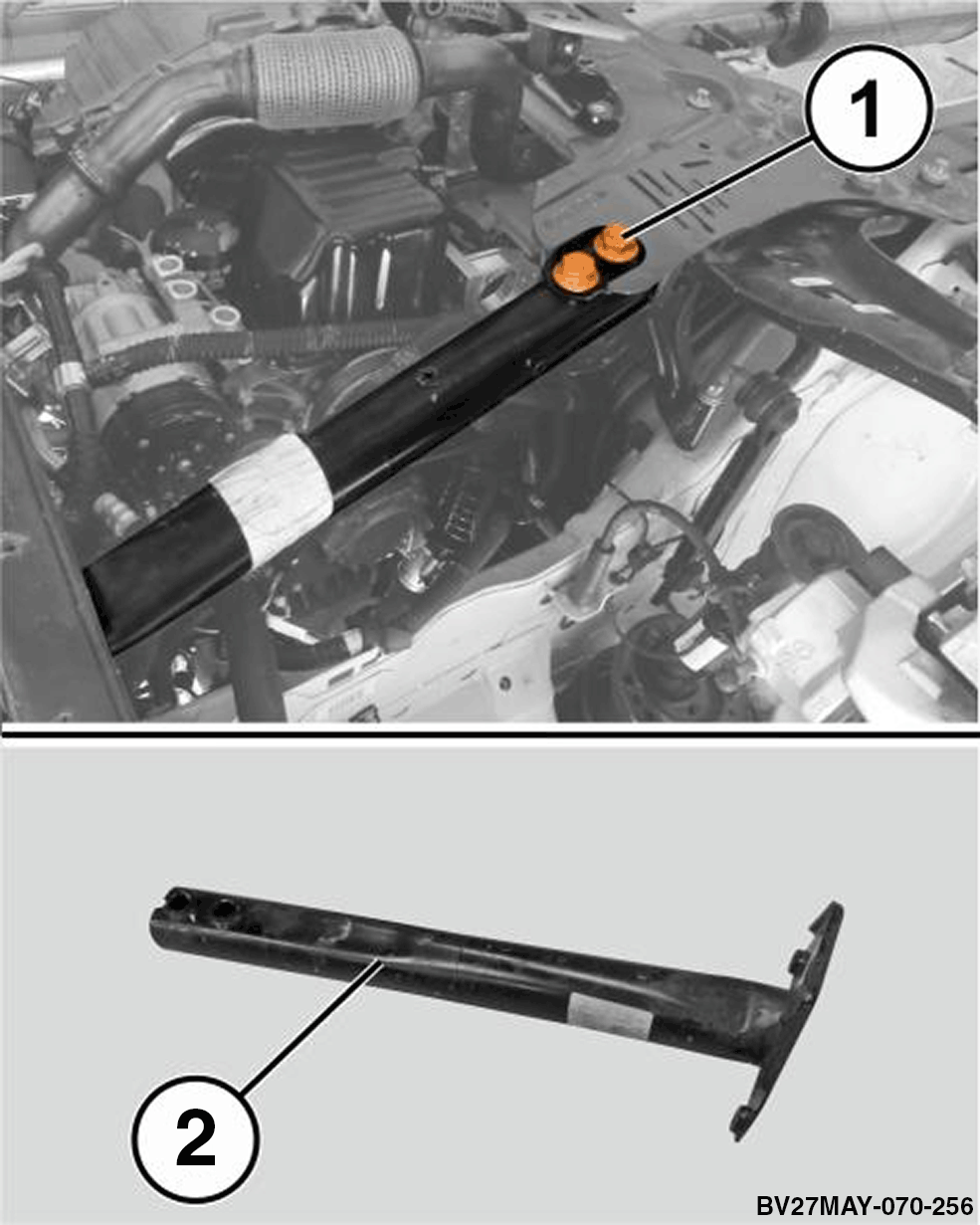

1. Install the lower load beams (2) and install the bolts (1).
2. Tighten the bolts (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

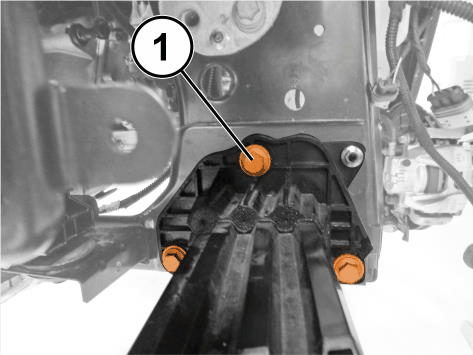

3. Install the bolts (1) attaching the pedestrian impact crossmember to the lower load beam.
4. Tighten the bolts (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

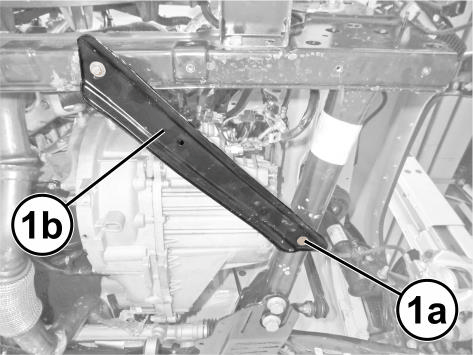

5. Position the reinforcement brackets (1b) back into place, install the bolts (1a).
6. Tighten the bolts (1a) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
7. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION
8. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION  or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

RIGHT SIDE

1. Install the lower load beams (2) and install the bolts (1).
2. Tighten the bolts (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

3. Install the bolts (1) attaching the pedestrian impact crossmember to the lower load beam.
4. Tighten the bolts (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

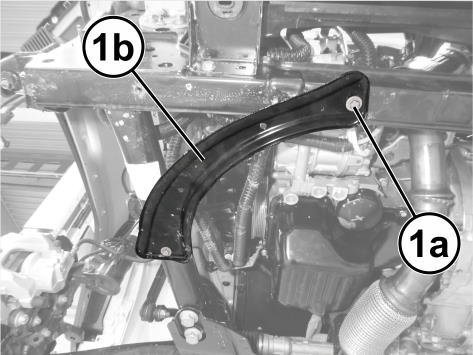

5. Position the reinforcement brackets (1b) back into place, install the bolts (1a).
6. Tighten the bolts (1a) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
7. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION
8. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION  or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
