Removal And Installation: Installation

GC0183865Courtesy of CHRYSLER GROUP, LLC
  1. Connect the wire harness connector (1) for the microphone (2).

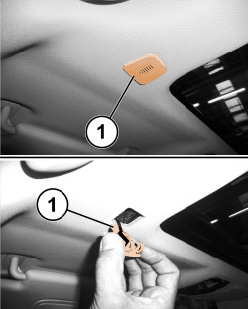

    GC0183864Courtesy of CHRYSLER GROUP, LLC
  2. Install the microphone (1) into the headliner.
  3. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
