Torque Specifications - Front Stabilizer Bar
 Courtesy of CHRYSLER GROUP, LLC
|

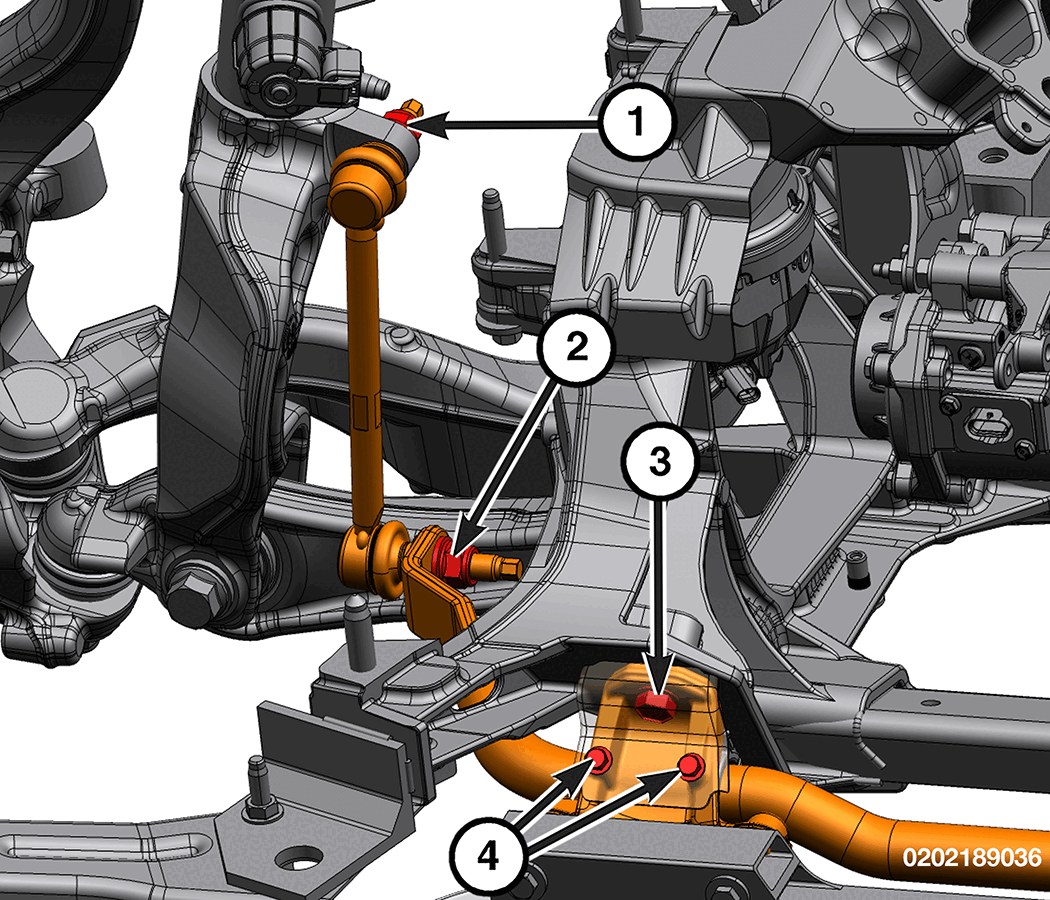

TORQUE SPECIFICATIONS - FRONT STABILIZER BAR
| CALLOUT |
DESCRIPTION |
SPECIFICATION |
COMMENT |
| 1 |
Stabilizer Bar Link Upper Nut |
123 N.m (91 Ft. Lbs.) |
- |
| 2 |
Stabilizer Bar Link Lower Nut |
123 N.m (91 Ft. Lbs.) |
- |
| 3 |
Stabilizer Bar Bolts |
97 N.m (72 Ft. Lbs.) |
- |
| 4 |
Heat Shield Bolts |
9 N.m (80 In. Lbs.) |
- |
