Spring Link: Removal
NOTE:
The air suspension system can be disabled and enabled by using the Display Screen Module (DSM) in the vehicle under Tire Jack Mode, which is the preferred method. If the disable level control routine in the diagnostic scan tool is used, it will only disable the level control (automatic and manual) for that ignition cycle. The air suspension system can also be enabled by driving the vehicle above 19 km/h (12 mph). The air suspension must be disabled prior to lifting the vehicle or performing any work.
- If equipped with air suspension, disable the air suspension system. Refer to DISABLING AND ENABLING AIR SUSPENSION .
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION
.

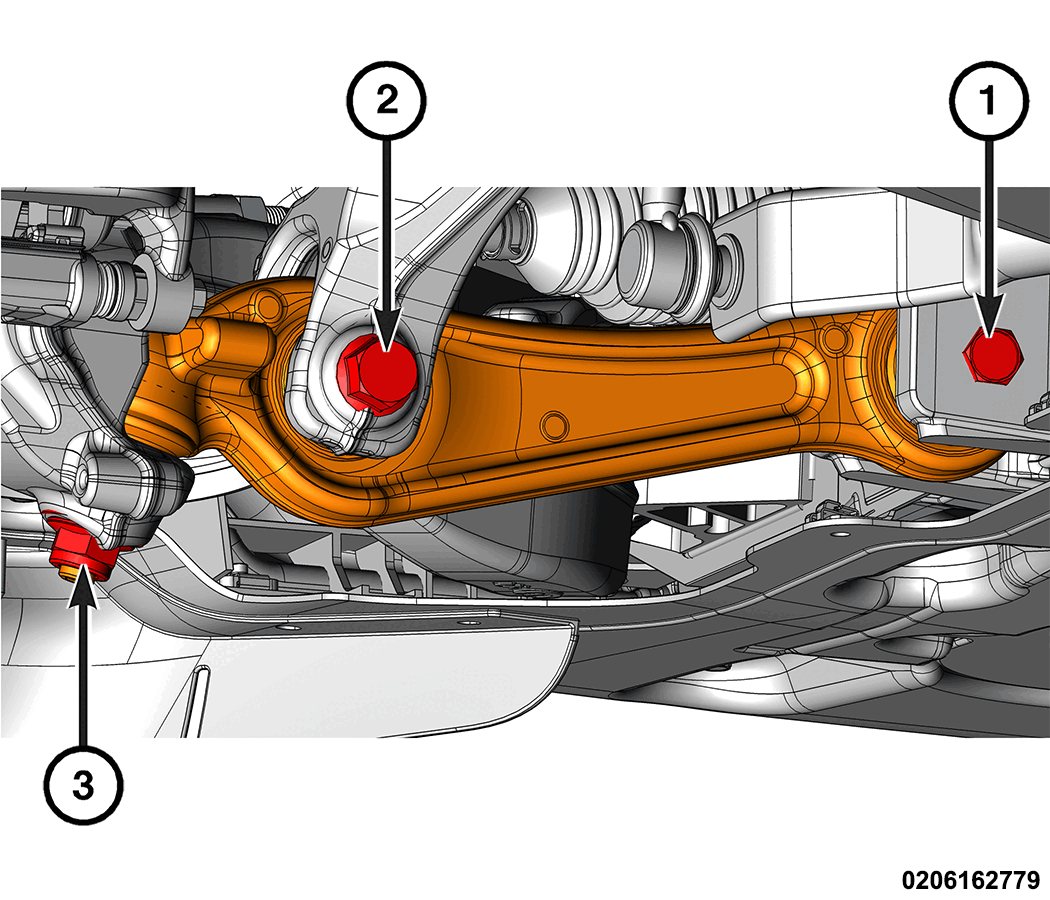

1 - Spring Link Bolt 2 - Clevis Lower Bolt 3 - Spring Link Ball Joint Nut - Hold the stud, then remove and DISCARD
the spring link ball joint nut.CAUTION:
DO NOT attempt to rotate the clevis lower nut. The clevis lower nut is pressed in the clevis bracket and damage will occur if the nut is rotated.
- Hold the clevis lower nut and remove the clevis lower bolt.
- Mark the relation of the adjustment eccentric and the subframe, if equipped.
- Remove the spring link bolt.
- Remove the spring link.
