Torque Specifications - Tie Rod End

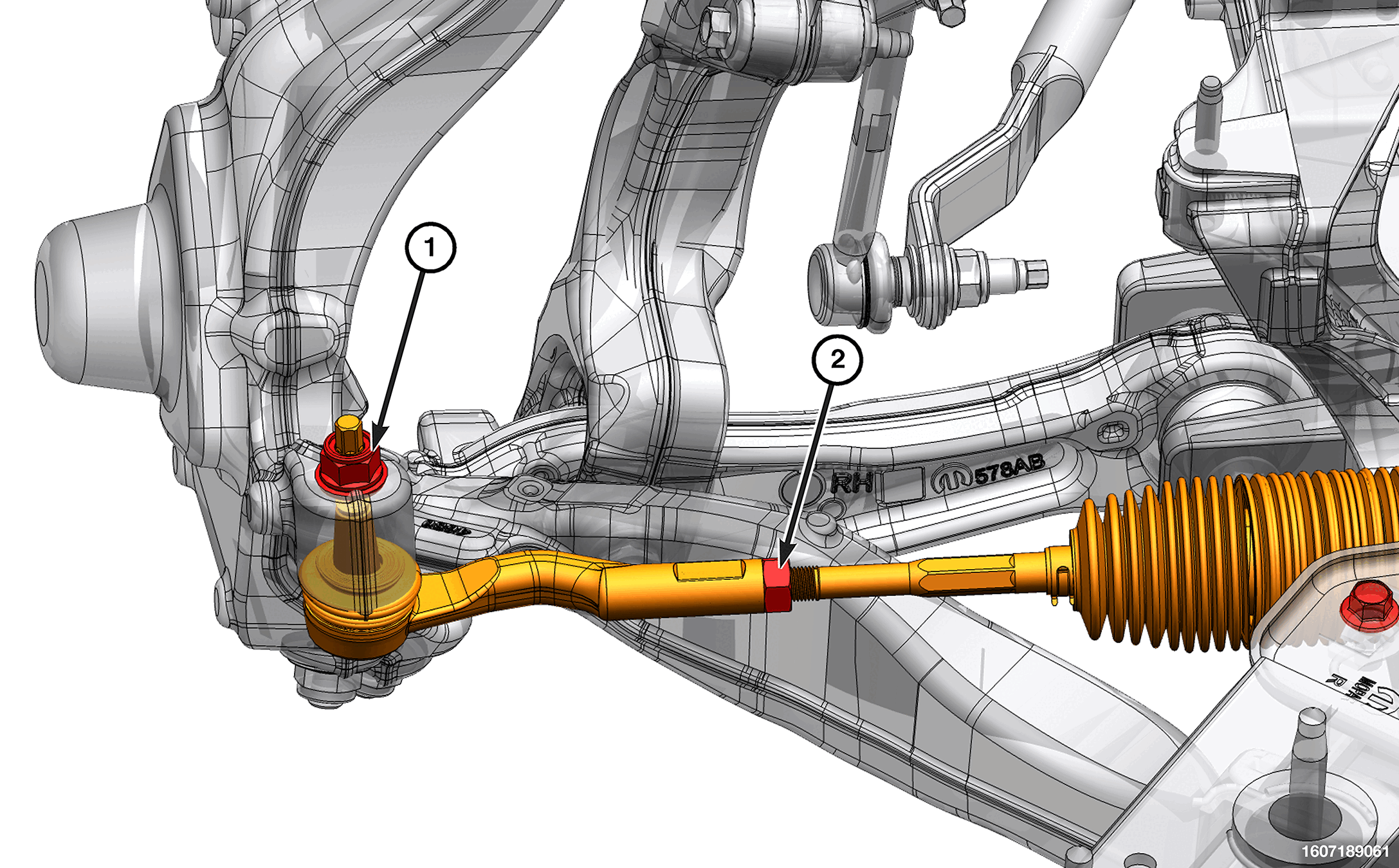

TORQUE SPECIFICATIONS - TIE ROD END
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Tie Rod End Nut | 54 + 110° N.m (40 + 110° Ft. Lbs.) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 2 | Tie Rod Jam Nut | 100 N.m (74 Ft. Lbs.) | - |

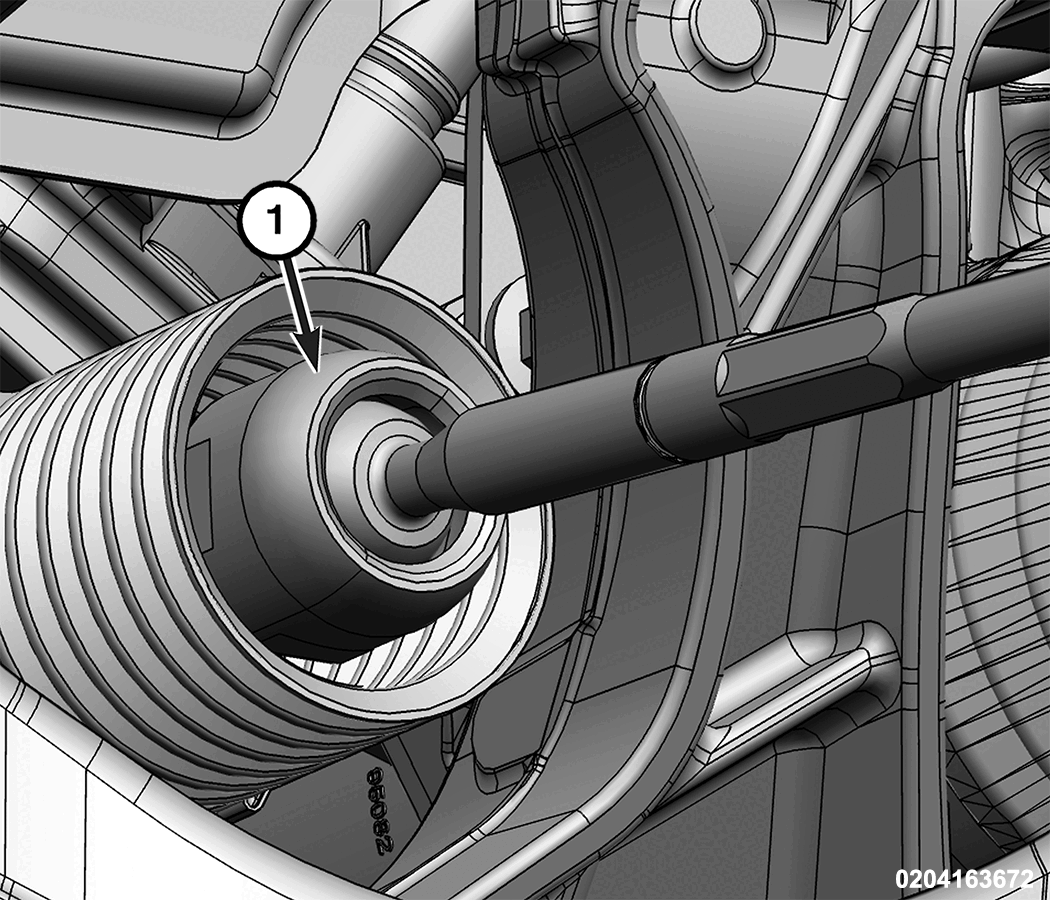

TORQUE SPECIFICATIONS - TIE ROD END
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Inner Tie Rod | 120 N.m (89 Ft. Lbs.) | - |
