Wireless Charging Pad Module: Removal

  1. Disconnect and isolate the negative battery cable(s). Refer to DISCONNECTING NEGATIVE BATTERY CABLE - 2.0L or DISCONNECTING NEGATIVE BATTERY CABLE - 5.7L or DISCONNECTING NEGATIVE BATTERY CABLE - 3.6L .
  2. Remove the storage bin from the front of the center console. Refer to BIN, STORAGE, REMOVAL AND INSTALLATION .

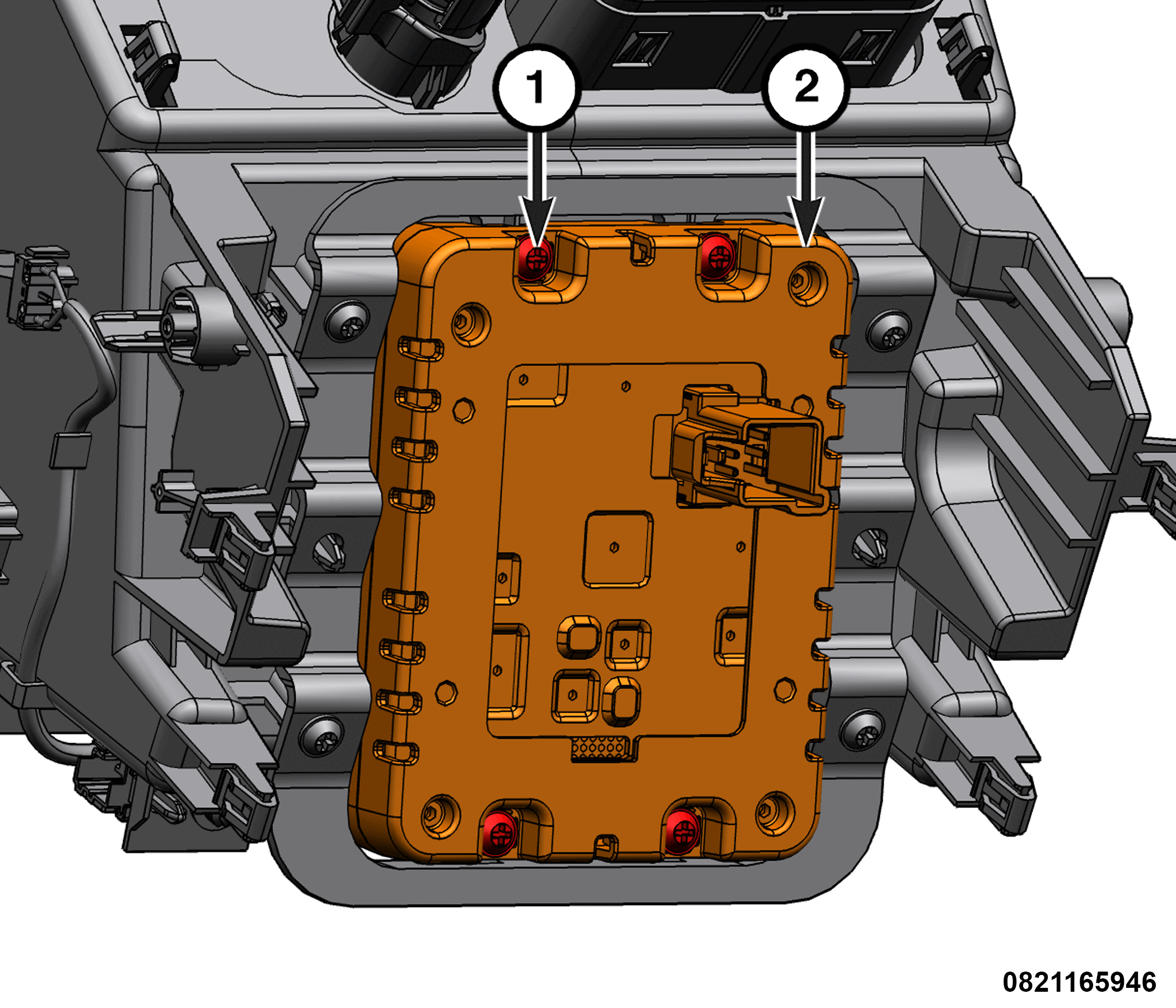

    GC0201941Courtesy of CHRYSLER GROUP, LLC
    1 - Fasteners
    2 - Wireless Charging Pad Module
  3. Disconnect the wire harness connector from the wireless charging pad module.
  4. Remove the fasteners securing the wireless pad charging module and remove the module from the storage bin.
