Stabilizer Bar: Notes

REMOVAL

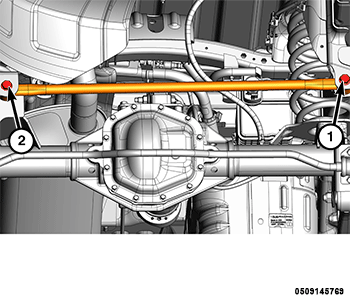

Courtesy of CHRYSLER GROUP, LLC

1 - Lower Track Bar Bolt

2 - Upper Track Bar Nut

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Position a jack under the axle to support the axle.
Remove the upper track bar bolt.
Remove the lower track bar bolt.
Remove the track bar.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

NOTE:

In any instance where a bolt is through a rubber bushing, the bolt must be torqued with the vehicle at normal ride height.
