Gladiator Freedom, Part Time T/Case Control
>>
Repair and Diagnosis
>>
Suspension
>>
Rear Suspension
>>
Technical Specifications
>>
Torque Specifications
>>

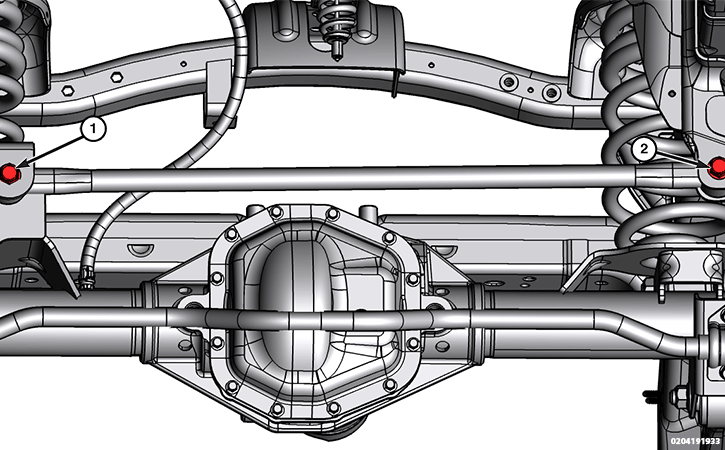

Torque Specifications - Rear Track Bar
Torque Specifications - Rear Track Bar
Courtesy of CHRYSLER GROUP, LLC
CALLOUT
DESCRIPTION
SPECIFICATION
COMMENT
1
Upper Track Bar Bolt
125 N. m (92 Ft. Lbs.)
-
2
Lower Track Bar Bolt
135 N. m (100 Ft. Lbs.)
-
Courtesy of CHRYSLER GROUP, LLC
