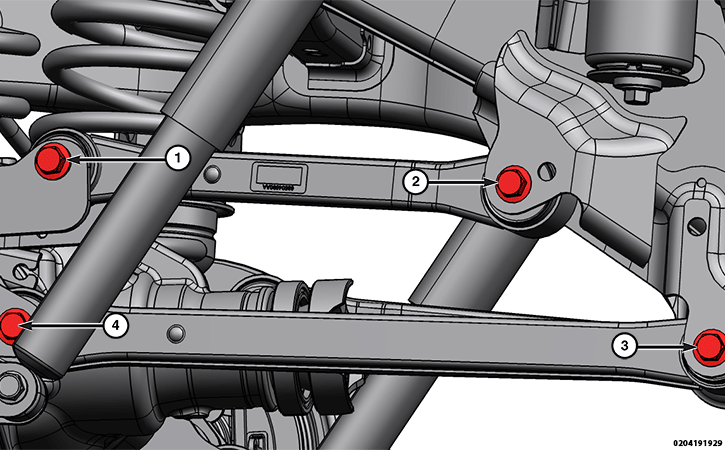

| 1 |
Upper Control Arm Rear Bolt |
150 N. m Plus 90° (111 Ft. Lbs. Plus 90°) |
Fastener must be torqued with the vehicle at normal ride height. |
| 2 |
Upper Control Arm Front Bolt |
150 N. m Plus 95° (111 Ft. Lbs. Plus 95°) |
Fastener must be torqued with the vehicle at normal ride height. |
| 3 |
Lower Control Arm Front Bolt |
150 N. m Plus 65° (111 Ft. Lbs. Plus 65°) |
Fastener must be torqued with the vehicle at normal ride height. |
| 4 |
Lower Control Arm Rear Bolt |
150 N. m Plus 60° (111 Ft. Lbs. Plus 60°) |
Fastener must be torqued with the vehicle at normal ride height. |
