Stabilizer Bar Link: Notes

REMOVAL

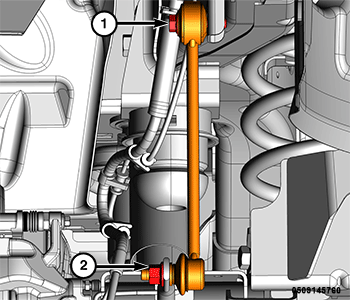

Courtesy of CHRYSLER GROUP, LLC

1 - Stabilizer Bar Link Upper Bolt

2 - Stabilizer Bar Link Lower Nut

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the stabilizer bar link upper bolt.
Remove the stabilizer bar link lower nut.
Remove stabilizer bar link.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

NOTE:

In any instance where a bolt is through a rubber bushing, the bolt must be torqued with the vehicle at normal ride height.
