Description And Operation: Description
The rear suspension is link and coil design.

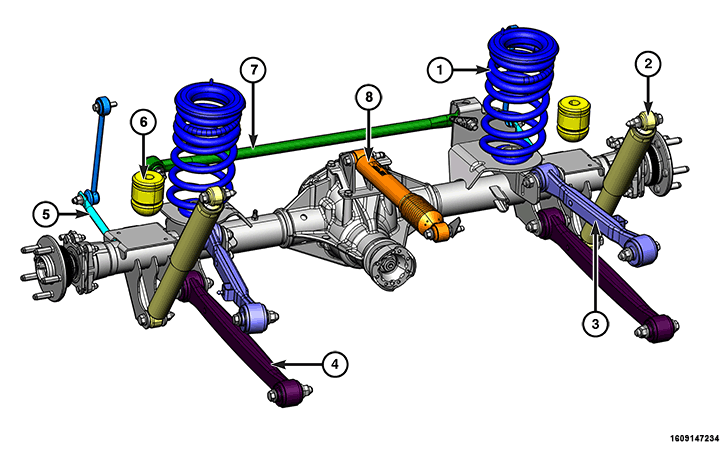

The major components of the rear suspension are:
- Coil Springs
- Shock Absorbers
- Upper Control Arms
- Lower Control Arms
- Stabilizer Bar
- Jounce Bumpers
- Track Bar
- Power Hop Damper
CAUTION:
Suspension components with rubber/urethane bushings (except stabilizer bar) should be tightened with the full weight of the vehicle at normal ride height. It is important to have the springs supporting the full weight of the vehicle when the fasteners are torqued. This will maintain vehicle ride comfort and prevent premature bushing wear.
