Power Hop Damper: Notes

REMOVAL

1. Raise and support the vehicle Refer to HOISTING, STANDARD PROCEDURE .
2. Support the rear axle with a suitable holding fixture.

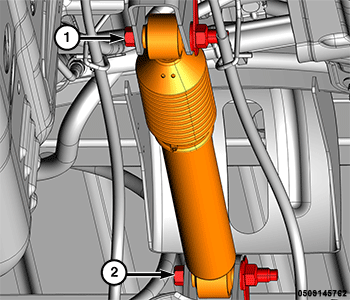

   Courtesy of CHRYSLER GROUP, LLC

   1 - Power Hop Damper Bolt

   2 - Power Hop Damper Bolt

3. Remove the power hop damper bolt and nut.
4. Remove the power hop damper bolt and nut.
5. Remove the rear suspension power hop damper.

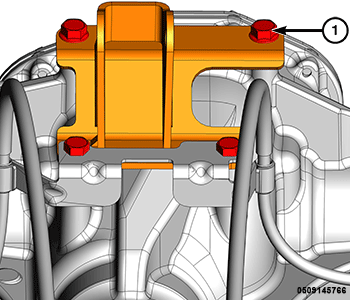

   Courtesy of CHRYSLER GROUP, LLC

   1 - Power Hop Damper Bracket Bolt

6. Remove the four power hop damper bracket bolts.
7. Remove the power hop damper bracket.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.
