Torque Specifications - Valve Timing
WARNING: This page is about a different variant/trim than selected.

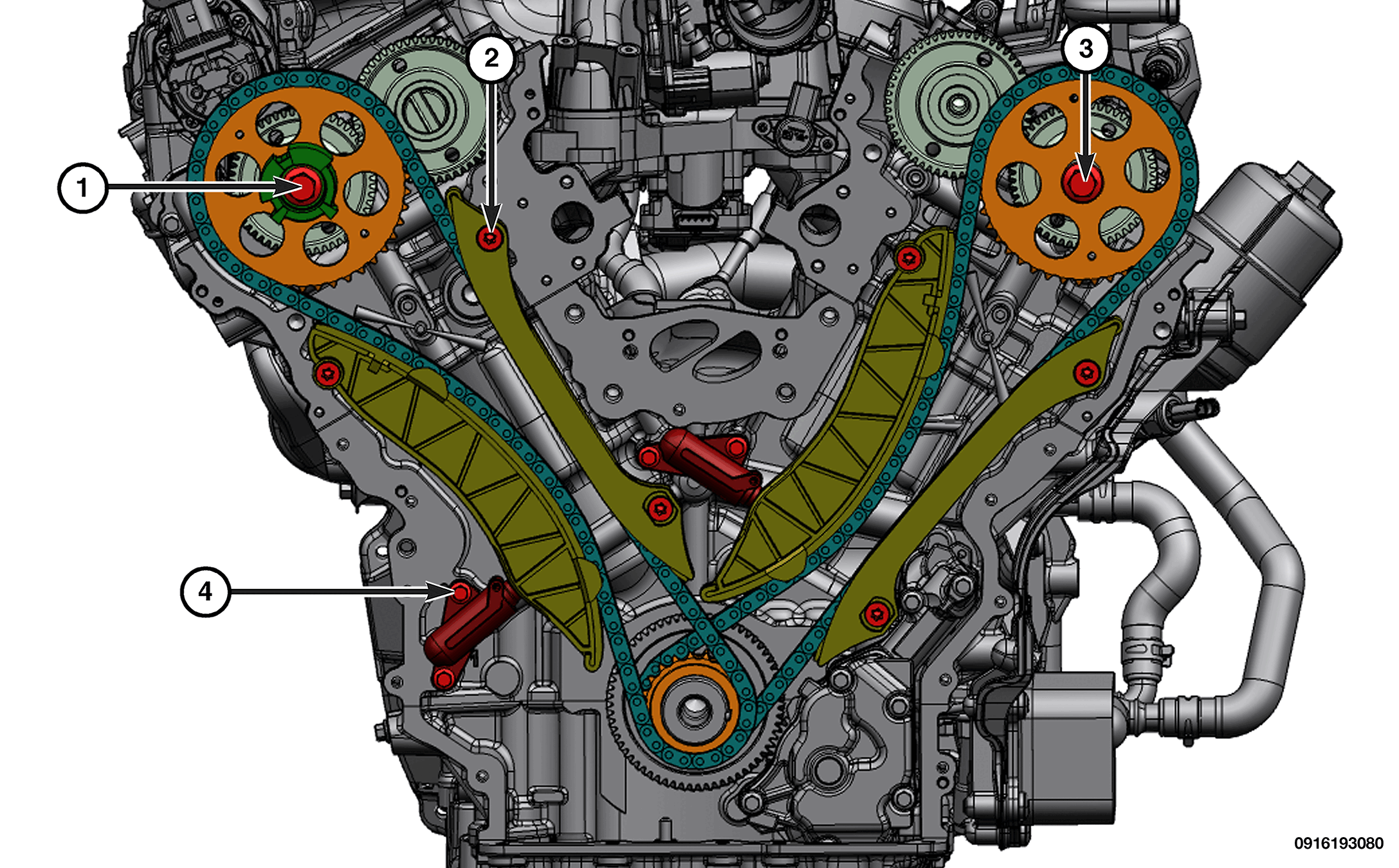

VALVE TIMING
| CALLOUT | DESCRIPTIONS | SPECIFICATIONS | COMMENT |
|---|---|---|---|
| 1 | Fuel Injection Pump Drive Gear Bolt (On Left Camshaft Sprocket) | 30 N.m (22 Ft. Lbs.) + 75° | - |
| 2 | Timing Chain Guide Bolts | 30 N.m (22 Ft. Lbs.) | - |
| 3 | Reluctor Wheel Bolt (On Right Camshaft Sprocket) | 30 N.m (22 Ft. Lbs.) + 73° | - |
| 4 | Timing Chain Tensioner | 14 N.m (11 Ft. Lbs.) | - |
| - | Oil Separator Bolt | 30 N.m (22 Ft. Lbs.) | - |
