Torque Specifications - Engine Mounts
WARNING: This page is about a different variant/trim than selected.
RIGHT ENGINE MOUNT
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Engine Mount Isolator Bolts | 55 N.m (41 Ft. Lbs.) | - |
| 2 | Engine Mount Isolator Nut | 115 N.m (85 Ft. Lbs.) | - |
| 3 | Engine Mount Bracket Bolts | 55 N.m (41 Ft. Lbs.) | - |

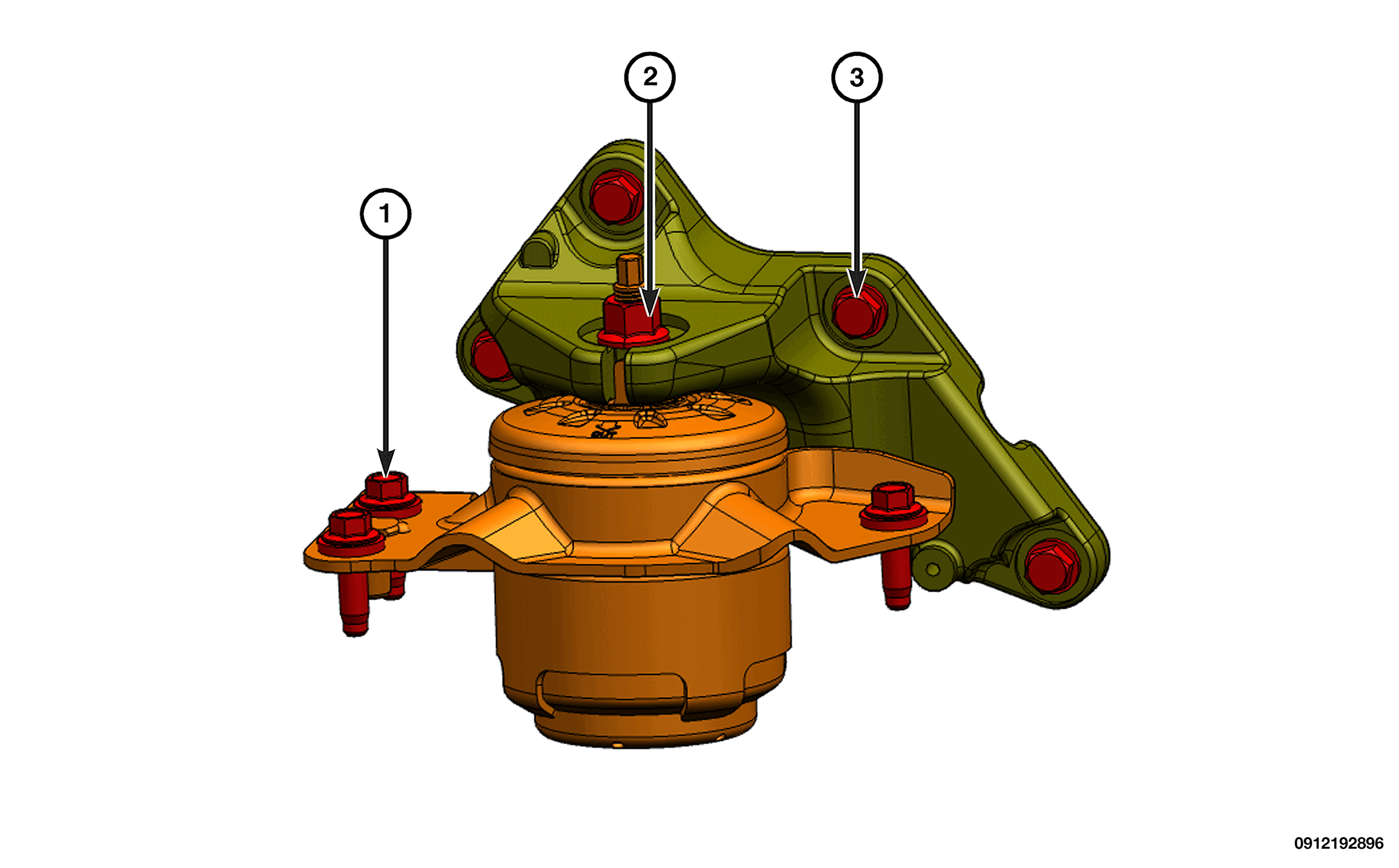

LEFT ENGINE MOUNT
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Engine Mount Isolator Bolts | 55 N.m (41 Ft. Lbs.) | - |
| 2 | Engine Mount Isolator Nut | 115 N.m (85 Ft. Lbs.) | - |
| 3 | Engine Mount Bracket Bolts | 55 N.m (41 Ft. Lbs.) | - |
| - | Transmission Coolant/Heater Tube Bolt | 20 N.m (15 ft. lbs.) | - |
