Torque Specifications - Engine Block

WARNING: This page is about a different variant/trim than selected.

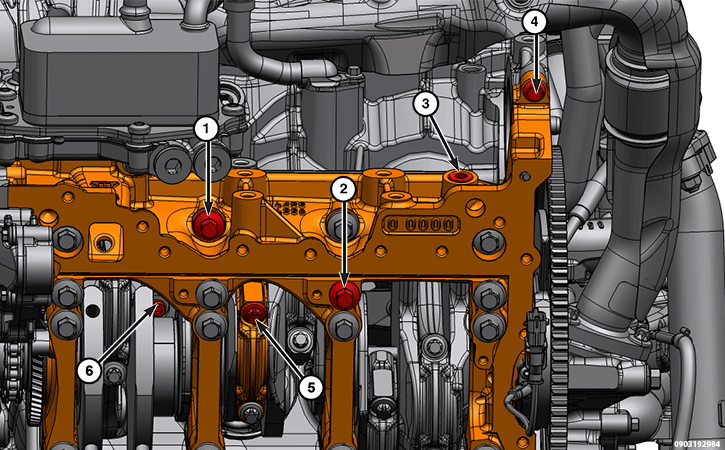

GC0205894Courtesy of CHRYSLER GROUP, LLC
ENGINE BLOCK

CALLOUT DESCRIPTIONS SPECIFICATION COMMENT
1, 2, 4 Bedplate Bolts Torque Procedure:
  1. Using NEW bolts, install the 26 M12 bolts (1 - 26) and the three M8 bolts (27 - 29) finger tight.
  2. Using the tightening sequence shown in illustration, tighten the M12 outer bolts (17 - 24) to 45 N.m (33 Ft. Lbs.).
  3. Using the tightening sequence shown in illustration, tighten the M12 inner bolts (1 - 16) to 45 N.m (33 Ft. Lbs.).
  4. Using a torque angle gauge, tighten the M12 inner bolts (1 - 16) an additional 110 degrees turn.
  5. Loosen the outer M12 bolts (17 - 24) two turns or 720°.
  6. Tighten the M12 outer bolts (17 - 20) to 25 N.m (18 Ft. Lbs.). Then using a torque angle gauge, tighten the bolts an additional 55°.
  7. Tighten the M12 outer bolts (21 - 24) to 25 N.m (18 Ft. Lbs.). Then using a torque angle gauge, tighten the bolts an additional 75°.
  8. Tighten the M12 bolts (25 and 26) to 120 N.m (89 Ft. Lbs.).
  9. Tighten the three M8 bolts (27 - 29) to 30 N.m 22 Ft. Lbs.).

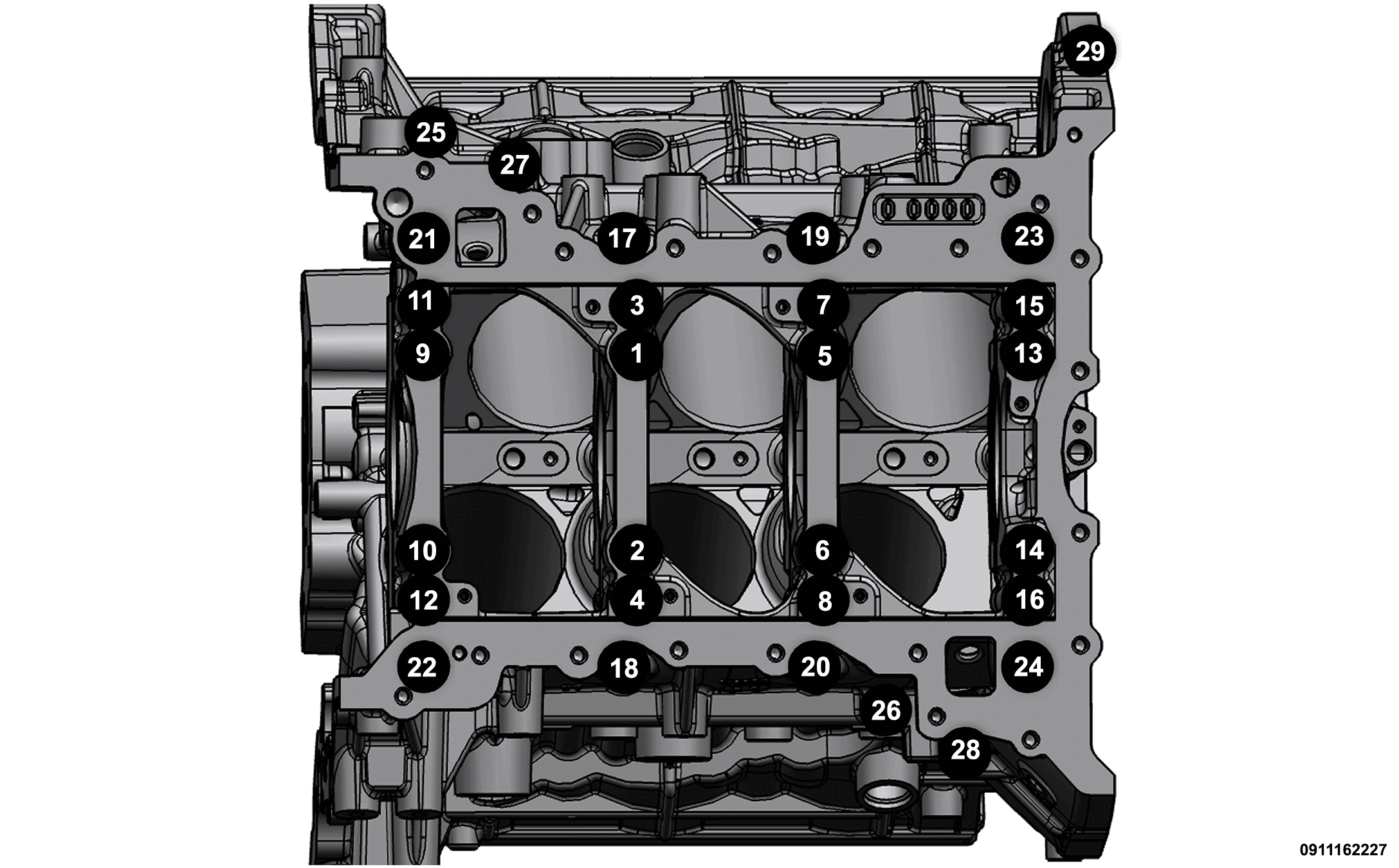

 Tightening Sequence
GC0191059Courtesy of CHRYSLER GROUP, LLC
3 Engine Block Timing Plug 30 N.m (22 Ft. Lbs.)  -
5 Piston Rod Cap Bolt -  Serviced with Assembly
6 Oil Jet Bolt (piston) 11 N.m (8 Ft. Lbs.)  -
- Engine Ground to Engine Block 20 N.m (15 Ft. Lbs.)  -
- Engine Lifting Brackets 55 N.m (41 Ft. Lbs.)  -
