Rear Axle Assembly - M220

REMOVAL

Raise and support the vehicle
Refer to HOISTING, STANDARD PROCEDURE .
Position and secure a lift under the axle.

Courtesy of CHRYSLER GROUP, LLC

1 - Front Driveshaft Flange

2 - Front Axle Flange
Index mark the driveshaft flange and the axle pinion flange for installation reference.
Remove and DISCARD the driveshaft bolts. Remove and secure the driveshaft.
CAUTION:
Driveshaft removal is a two-person operation. Never allow the driveshaft to hang from the center bearing, or while only connected to the transmission or rear axle flanges. An assistant is required. If a driveshaft section is hung unsupported, damage may occur to the shaft, joint and center bearing from over-angulation. This may result in driveline vibrations or component failure.

Courtesy of CHRYSLER GROUP, LLC

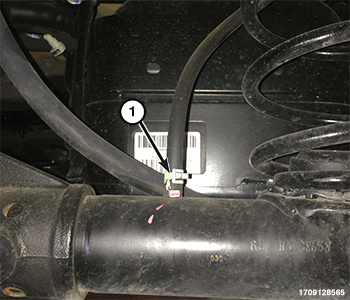

1 - Vent Hose
Remove the vent hose from the axle tube.
NOTE:
When servicing or replacing the rear axle you MUST replace the rear hose vent fitting.
If equipped, disconnect the power hop damper. Refer to DAMPER, POWER HOP, REMOVAL AND INSTALLATION .
If equipped, disconnect the axle locker wire harness connectors.
Remove the brake calipers and rotors from the axle. Refer to ROTOR, BRAKE, REMOVAL AND INSTALLATION .
As necessary, remove the park brake cables from the axle. Refer to CABLE, PARKING BRAKE, REMOVAL AND INSTALLATION .
Disconnect the rear wheel speed sensor wire harness connectors.

Courtesy of CHRYSLER GROUP, LLC

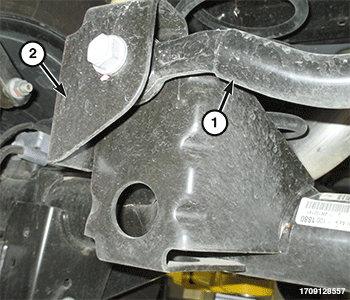

1 - Track Bar

2 - Axle Bracket
Remove the track bar bolt and nut and remove the track bar from the axle bracket.

Courtesy of CHRYSLER GROUP, LLC

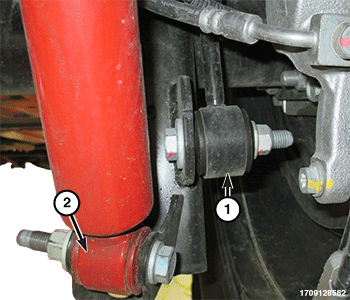

1 - Stabilizer Links

2 - Shock Absorbers
Remove the stabilizer bar link bolts and nuts and remove the stabilizer links from the axle brackets.
Remove the shock absorber bolts and nuts and remove the shock absorbers from the axle brackets.

Courtesy of CHRYSLER GROUP, LLC

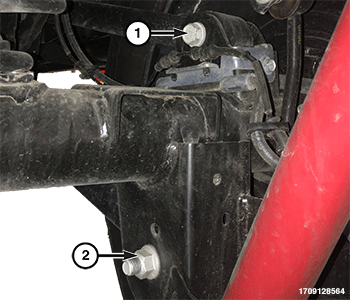

1 - Upper Control Arm Bolts

2 - Lower Control Arm Bolts
Remove the upper control arm bolts and nuts and upper control arms from the axle brackets.
Loosen the lower control arm bolts and nuts and lower the axle enough to remove the coil springs and spring insulators.
Remove the lower control arm from the axle brackets.
Lower and remove the axle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

CAUTION:

The weight of the vehicle must be supported by the springs before the control arms and track bar are tightened. Failure to follow these instruction will cause premature bushing failure.

The track bar, upper and lower control arm bolts should be loosely tightened until all other components are tightened.

Courtesy of CHRYSLER GROUP, LLC

1 - Front Driveshaft Flange

2 - Front Axle Flange
Install the driveshaft with the driveshaft flange and pinion flange reference marks aligned. Driveshaft bolts must be replaced with NEW bolts. If NEW bolts are not available clean the old bolts and apply Mopar® Lock and Seal Adhesive or equivalent.
Torque the track bar, upper and lower control arm bolts last with the weight of the vehicle on the axle.
