Description And Operation
DESCRIPTION

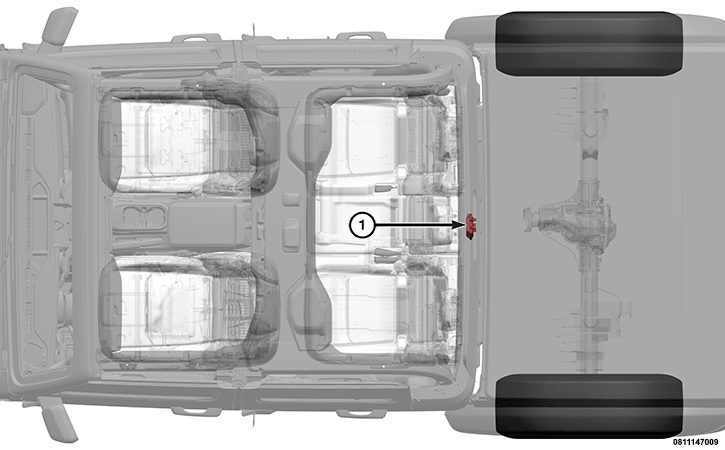

| 1 - CVPM |
The Central Vision Processing Module (CVPM) generates the view in the Front View Camera (FVC) and the Rear View Camera (RVC) system displays according to inputs received from the two external cameras and driver touch screen inputs via a Low Voltage Differential Signal (LVDS) coaxial cable. The CVPM combines the video feeds together and outputs it to the display screen.
The wiring harness connector to the CVPM includes the power and the video feed connections. The CVPM video feed connections are as follows:
- Light Green - Front Camera.
- Orange - Rear Camera.
- Violet - to the Radio.
The CVPM is located on the rear cabin wall.
OPERATION
For additional information on the Front and Rear View Camera system functionality and the CVPMs role in the operation of this system. Refer to DESCRIPTION AND OPERATION .
