Rear Driveline Module (RDM): (Driveshaft)

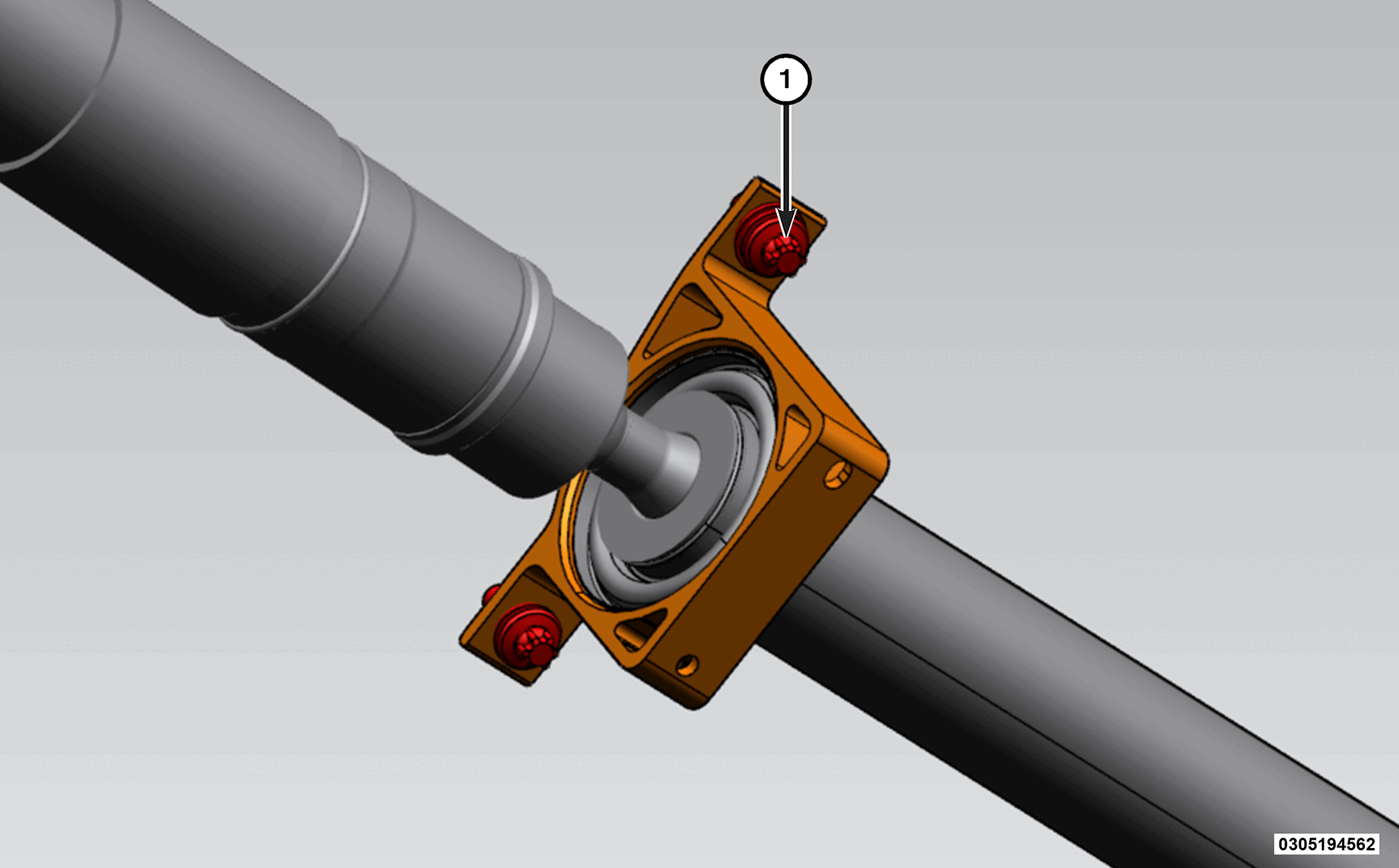

GC0206730

Courtesy of CHRYSLER GROUP, LLC

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Center Bearing Support Bolts	55 N.m (41 Ft. Lbs.)	-
