Removal And Installation: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the tire and wheel assembly. Refer to TIRES & WHEELS, REMOVAL AND INSTALLATION .

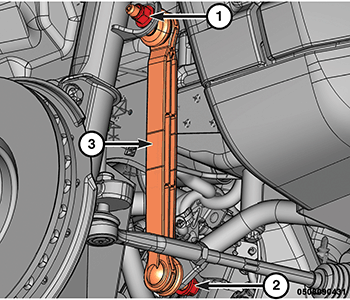

    GC0179283Courtesy of CHRYSLER GROUP, LLC
  3. Remove the upper stabilizer bar link nut (1) and DISCARD  .
  4. Remove the lower stabilizer bar link nut (2) and DISCARD  .
  5. Remove the stabilizer bar link (3).
