Removal And Installation: Installation

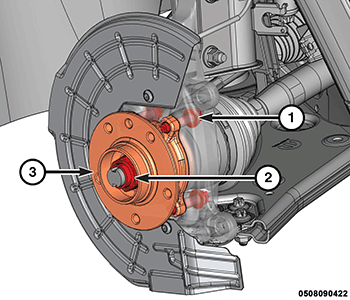

- Position the hub and bearing (3) into the steering knuckle.
- Install four NEW hub and bearing bolts (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Install a NEW
hub nut (2) and tighten to the to the proper torque specification. Refer to TORQUE SPECIFICATIONS .NOTE:
Do not use impact tools when securing the hub nut.

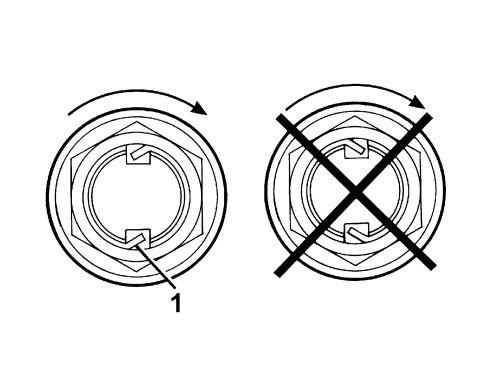

- Stake the hub nut as shown in illustration (1) with special tool (special tool #10287-1, Tool, Staking).
- Install the front brake rotor. Refer to ROTOR, BRAKE, REMOVAL AND INSTALLATION .
- Install the tire and wheel assembly. Refer to TIRES & WHEELS, REMOVAL AND INSTALLATION .
- Remove the support and lower the vehicle.
