International Vehicle Control And Display Symbols: Description: Notes
FCA US LLC uses international symbols to identify various systems on the vehicle.
The graphic symbols illustrated are used to identify various instrument controls, vehicle controls and service information references. The symbols correspond to the controls and displays that are located on the instrument panel and throughout the vehicle.
INTERNATIONAL INFORMATION SYMBOL IDENTIFICATION
| SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION |
|---|---|---|---|
| 1 | 115-Volt Power Inverter | 11 | Side Airbag |
| 2 | USB Connector | 12 | Seat Belt |
| 3 | Lighter | 13 | Airbag |
| 4 | Fuel Fill Side | 14 | Supplemental Restraint System |
| 5 | Spare Tire Winch | 15 | Power Steering Fluid |
| 6 | Fuse | 16 | See Service Information |
| 7 | Key Activate (Power Outlet) | 17 | See Appropriate Service Information |
| 8 | Warning | 18 | Emergency Release Handle |
| 9 | Child Seat Tether Anchor | 19 | Jack/Jack Tools Location |
| 10 | Lower Anchors and Tether for Children (LATCH) | 20 | No Power Washing |

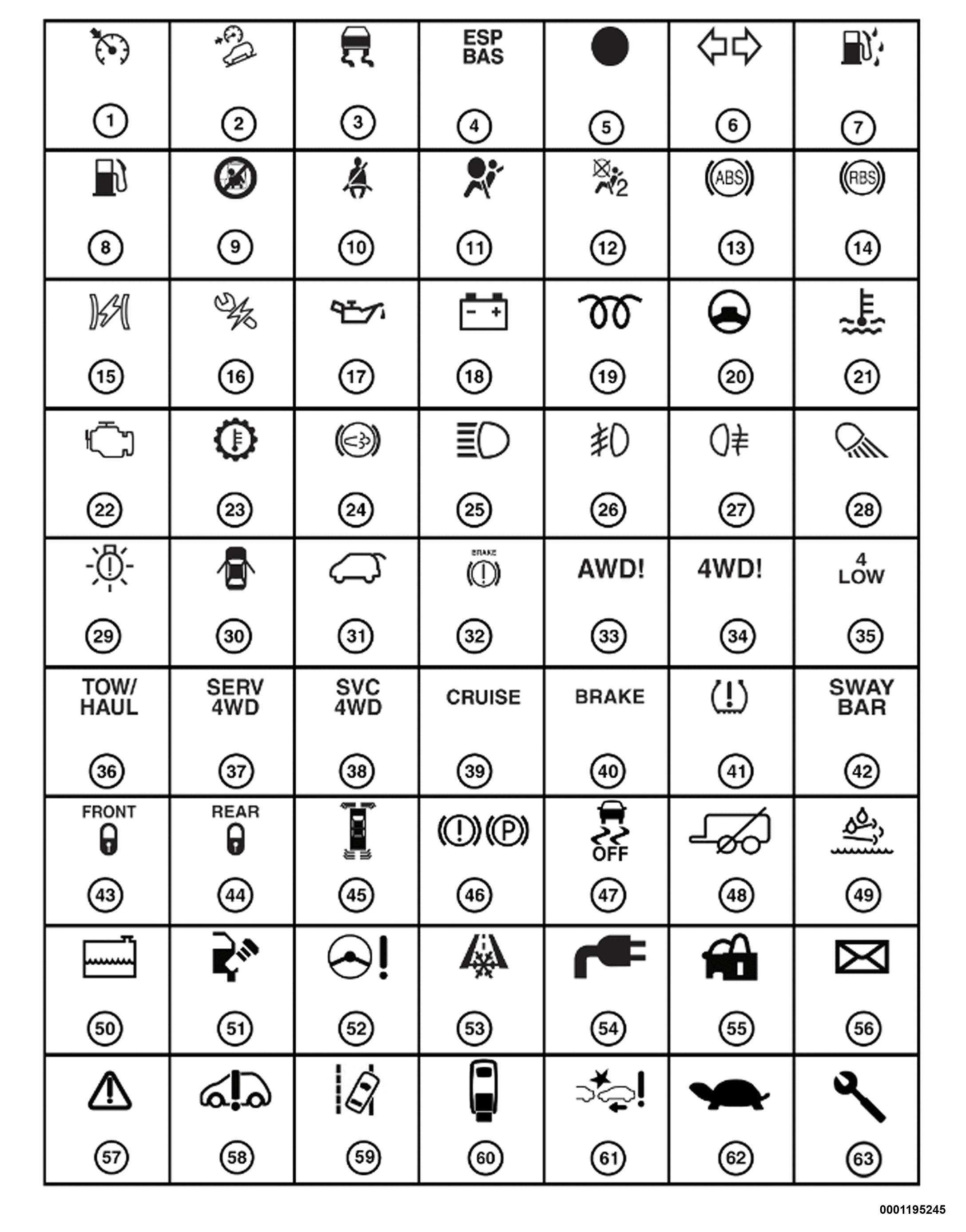

INTERNATIONAL INDICATOR SYMBOL IDENTIFICATION
| SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION |
|---|---|---|---|
| 1 | Electronic Speed Control | 33 | All Wheel Drive |
| 2 | Hill Descent Control | 34 | Four Wheel Drive |
| 3 | Traction Control | 35 | Four Wheel Drive Low |
| 4 | Electronic Stability Program/Brake System Assist System | 36 | Tow/Haul |
| 5 | Security Indicator | 37 | Service Four Wheel Drive |
| 6 | Turn Signals | 38 | Service Four Wheel Drive |
| 7 | Water In Fuel | 39 | Cruise Indicator |
| 8 | Low Fuel | 40 | Brake System Warning Parking Brake |
| 9 | Side Airbag | 41 | Tire Pressure Monitor |
| 10 | Seat Belt Reminder | 42 | Sway Bar Disconnect Indicator |
| 11 | Airbag Warning Light | 43 | Front Axle Lock |
| 12 | Passenger Airbag Off | 44 | Rear Axle Lock |
| 13 | Failure Of Anti-Lock Braking System | 45 | Park Assist Indicator |
| 14 | Hybrid Electric Vehicle (HEV) Brake Regenerative Light | 46 | Park Brake Indicator |
| 15 | Electronic Throttle Control | 47 | Electronic Stability Control/Traction Control Off |
| 16 | HEV Service Light | 48 | Trailer Brake System Off |
| 17 | Engine Oil | 49 | Diesel Exhaust Fluid |
| 18 | Battery Charging | 50 | Coolant Level |
| 19 | Glow Plug/Intake Air Heated | 51 | Fuel Cap |
| 20 | Power Steering Fluid | 52 | Electric Power Steering (EPS) |
| 21 | Engine Coolant Temperature | 53 | Icy Road Condition |
| 22 | Malfunction Indicator Light | 54 | Electric Vehicle Plug In State |
| 23 | Transmission Oil Temperature Light | 55 | Vehicle Theft Alarm |
| 24 | Diesel Exhaust Brake | 56 | Stored Warnings |
| 25 | High Beam | 57 | Master Warning Light |
| 26 | Front Fog Light | 58 | Electric Vehicle System Service |
| 27 | Rear Fog Light | 59 | Lane Departure Warning Indicator |
| 28 | Cargo Lamp | 60 | Tailgate Ajar Indicator |
| 29 | Exterior Bulb Failure | 61 | Service Forward Collision Warning |
| 30 | Door Ajar | 62 | Turtle Limited Torque Warning |
| 31 | Liftgate Open | 63 | Service Required/Call For Service Warning |
| 32 | Brake System Warning Parking Brake |
INTERNATIONAL CONTROL SYMBOL IDENTIFICATION
| SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION | SYMBOL | DESCRIPTION |
|---|---|---|---|---|---|
| 1 | Rear Window Wiper | 30 | Park Assist Off | 59 | Convertible 4 Window Down |
| 2 | Rear Window Intermittent Wiper | 31 | Electronic Stability Program/Brake System Assist System | 60 | Window Lock |
| 3 | Rear Window Washer | 32 | Park Brake Release | 61 | Power Rear Window |
| 4 | Rear Window Defrost | 33 | Adjustable Headlights | 62 | Voice Recognition Button |
| 5 | Heated Mirror | 34 | Low Beam | 63 | Uconnect™ Button |
| 6 | Turn Signals | 35 | Front Fog Light | 64 | Sway Bar Disconnect |
| 7 | Adjustable Pedals | 36 | Rear Fog Light | 65 | All Wheel Drive |
| 8 | Horn | 37 | Cargo Lamp | 66 | Four Wheel Drive |
| 9 | Windshield Wiper Intermittent | 38 | Hazard Lights | 67 | Two Wheel Drive |
| 10 | Windshield Washer | 39 | 115-Volt Power Inverter | 68 | Four Wheel Drive Low |
| 11 | Windshield Washer Fluid Level | 40 | Key Activate (Power Outlet) | 69 | Four Wheel Drive Lock |
| 12 | Windshield Electrically Heated | 41 | Exterior Bulb Failure | 70 | Four Wheel Drive Auto |
| 13 | Windshield Defrost | 42 | Master Lighting Switch | 71 | Front Axle Lock |
| 14 | Windshield Wiper And Washer | 43 | Dome Light | 72 | Rear Axle Lock |
| 15 | Ventilating Fan | 44 | Park Lights | 73 | Electronic Vehicle Information Center (EVIC) Menu |
| 16 | Air Conditioning | 45 | Instrument Panel Illumination | 74 | Navigation Button |
| 17 | Upper Air Outlet | 46 | Electronic Stability Program Off | 75 | Step |
| 18 | Upper And Lower Air Outlet | 47 | Diesel Exhaust Brake | 76 | Reset |
| 19 | Lower Air Outlet | 48 | Overdrive Off | 77 | Axle Lock Button |
| 20 | Defrost And Lower Air Outlet | 49 | Hood Release | 78 | Traction Control Off |
| 21 | Heated Seat Low | 50 | Trunk/Deck Release | 79 | Electronic Stability Control Off |
| 22 | Heated Seat High | 51 | Door Ajar | 80 | Trailer Brakes |
| 23 | Ventilated Seat | 52 | Liftgate Release | 81 | Engine Stop/Start (ESS) ON/OFF |
| 24 | Recirculation | 53 | Sliding Door | 82 | Lane Departure Warning Switch |
| 25 | Heated Steering Wheel | 54 | Sliding Door | 83 | Forward Collision Warning (FCW) |
| 26 | Passenger Air Bag Off | 55 | Convertible Top Down | 84 | Park Assist Switch |
| 27 | Electronic Speed Control | 56 | Convertible Top Up | 85 | Parallel and Perpendicular Park Assist Switch |
| 28 | Cruise Indicator | 57 | Door Lock | 86 | Selec Speed Control Indicator Light |
| 29 | Hill Descent Control | 58 | Window Lift |
