USB Charge Only Power Outlet: Removal
- Remove the floor console end cap. Refer to
CONSOLE, FLOOR, END CAP, REMOVAL AND INSTALLATION
.

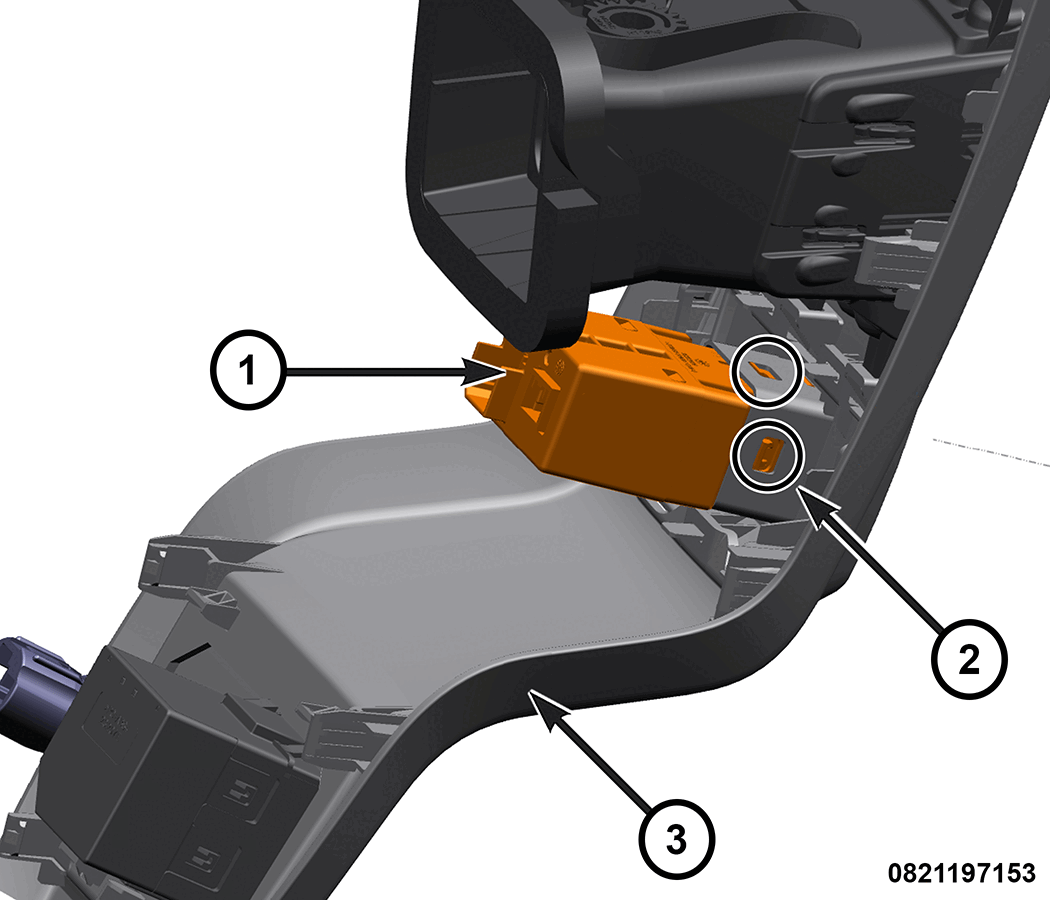

- Disengage the tabs (2) on the perimeter of the USB power outlet (1) and slide the power outlet (1) out of the face of the floor console end cap (3).
