Mid 12 Volt Outlet: Removal

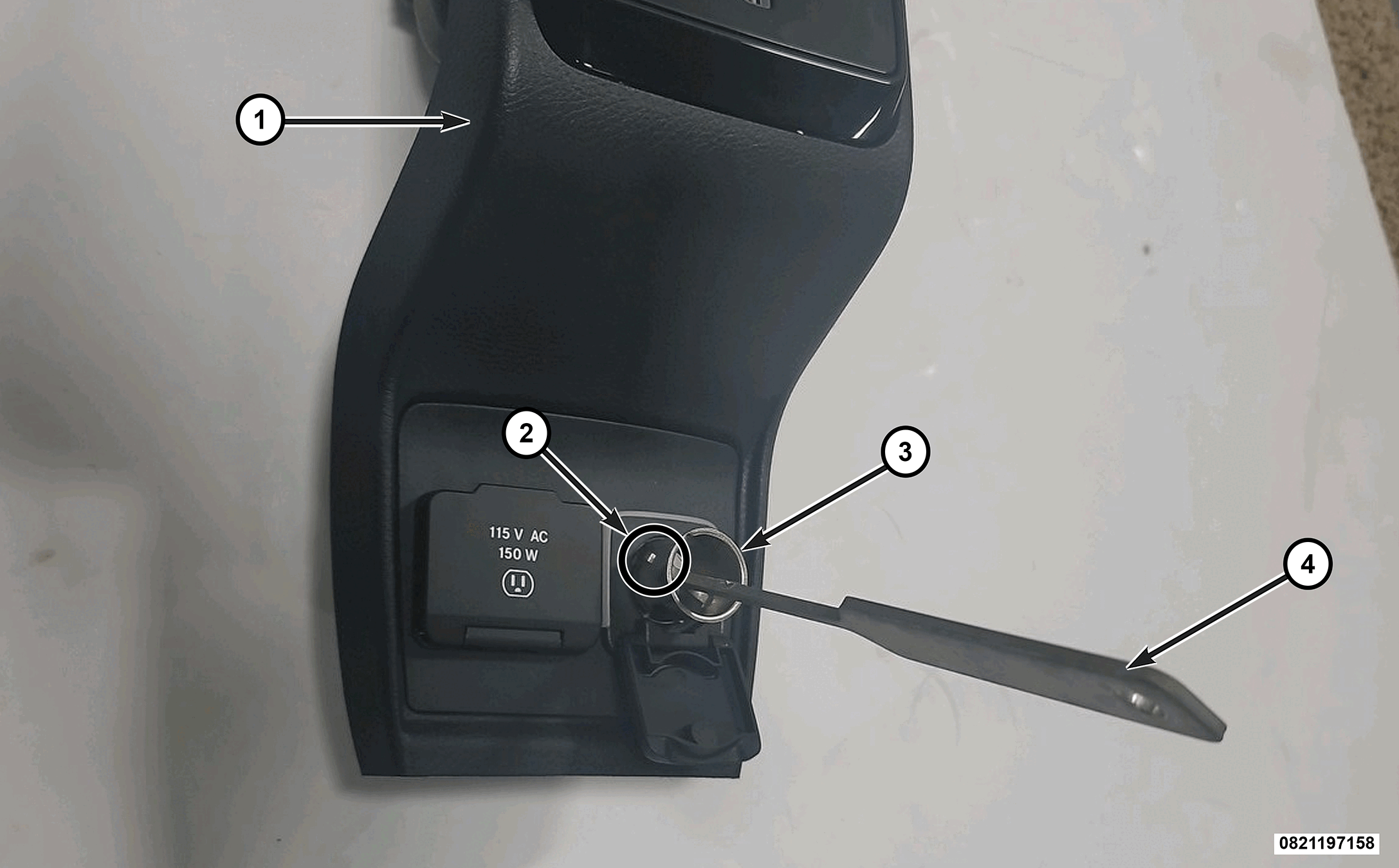

- Insert Remover, Power Outlet (4) (special tool #10246A, Remover, Power Outlet) into the retaining bosses (2) of the power outlet (3) and slide the 12 volt power outlet (3) out of the face of the floor console end cap (1).
- Disconnect the wire harness connector from the power outlet and remove from the floor console.
