Torque Specifications - FLEXPLATE And Torque Converter
TORQUE SPECIFICATIONS - FLEXPLATE AND TORQUE CONVERTER

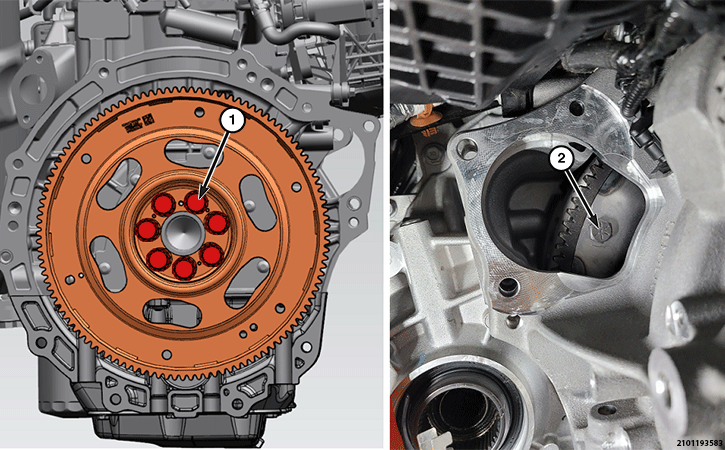

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Flexplate to Crankshaft Bolts | 110 N.m (81 Ft. Lbs.) | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. |
| 2 | Torque Converter Bolts | 10 N.m + 38° (7 Ft. Lbs. + 38°) | Do not reuse these fasteners. If removed, a NEW fastener must be installed and tightened to specifications. |
