SD2C (Standard) Connector End View (SD2C)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: SD2C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Sd2c Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

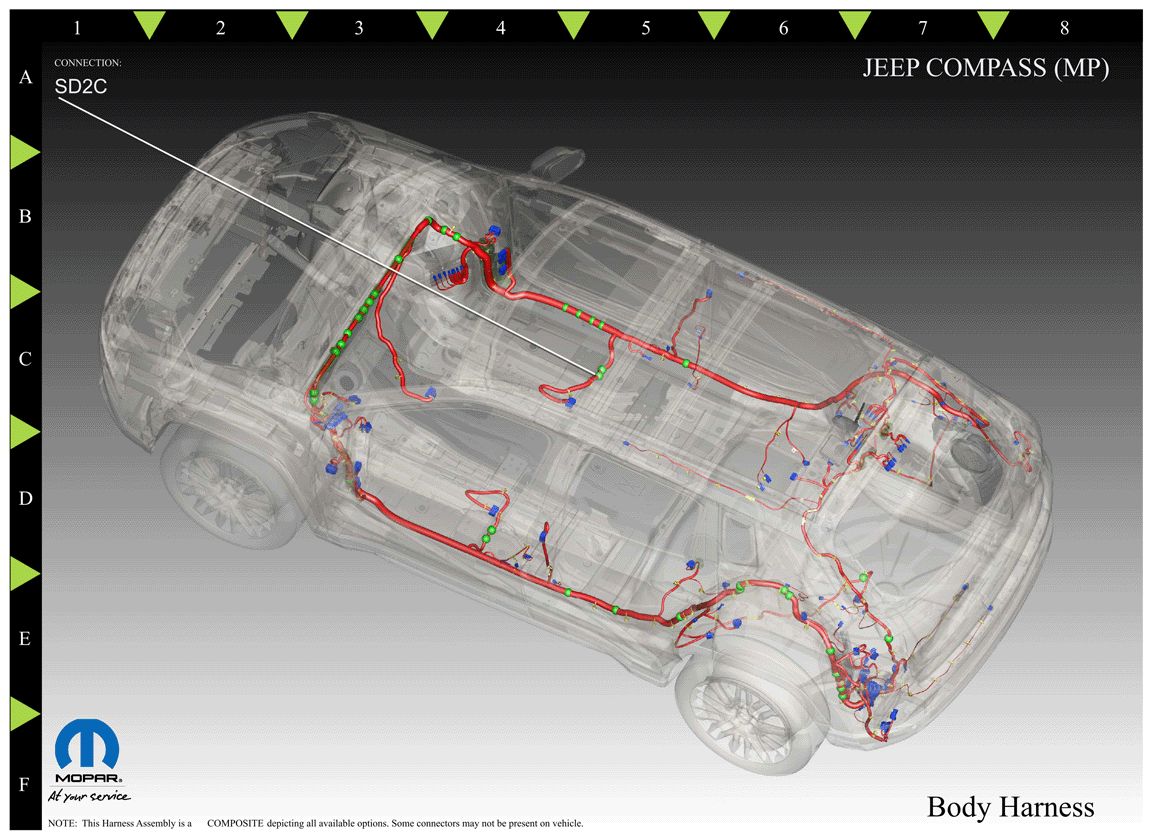

Fig 2: Sd2c Component Location (Standard)

GCWD1294630

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D14

YE

0.50

CAN C (-)

N/A

1

D2

YE

0.50

CAN C (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
