Relay-Rear Window Defogger (On PCB) (Standard) Connector End View (R0028)

Harness-Family: PDC_Front

Color: NA

Gender: MALE

Part Number: Relay_Micro

Part Description: Not Available

Connector No: R0028

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Relay-Rear Window Defogger (on Pcb) Connector End View (Standard)

Courtesy of CHRYSLER

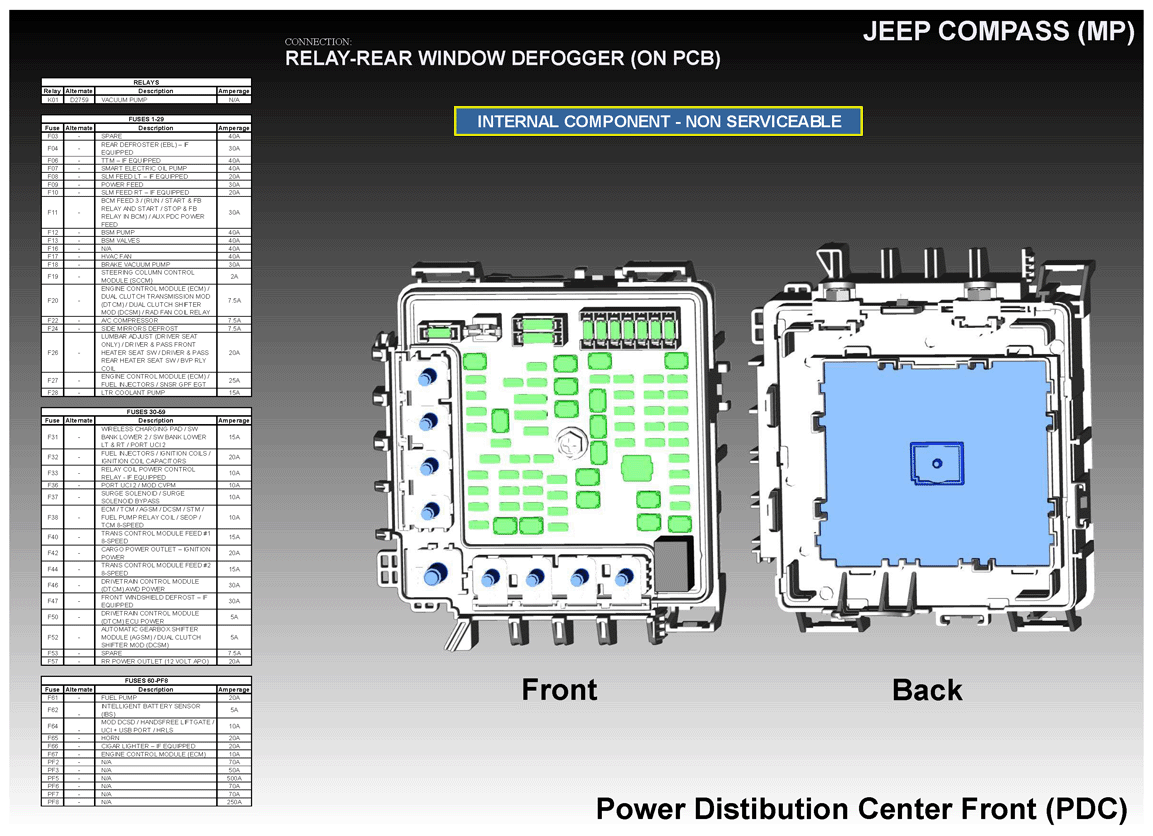

Fig 2: Relay-Rear Window Defogger (on Pcb) Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F944

INTERNAL

FUSED IGNITION

N/A

C115

INTERNAL

DEFOGGER RELAY CONTROL

N/A

F944

INTERNAL

FUSED IGNITION

N/A

⁽¹⁾	Pins not listed are not used for this connector
