Module-Wireless Charging (Standard) Connector End View (D2851A)

Harness-Family: CONSOLE_CENTER

Color: GRAY

Gender: FEMALE

Part Number: 7283-6454-40

Part Description: Not Available

Connector No: D2851A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Wireless Charging Connector End View (Standard)

Courtesy of CHRYSLER

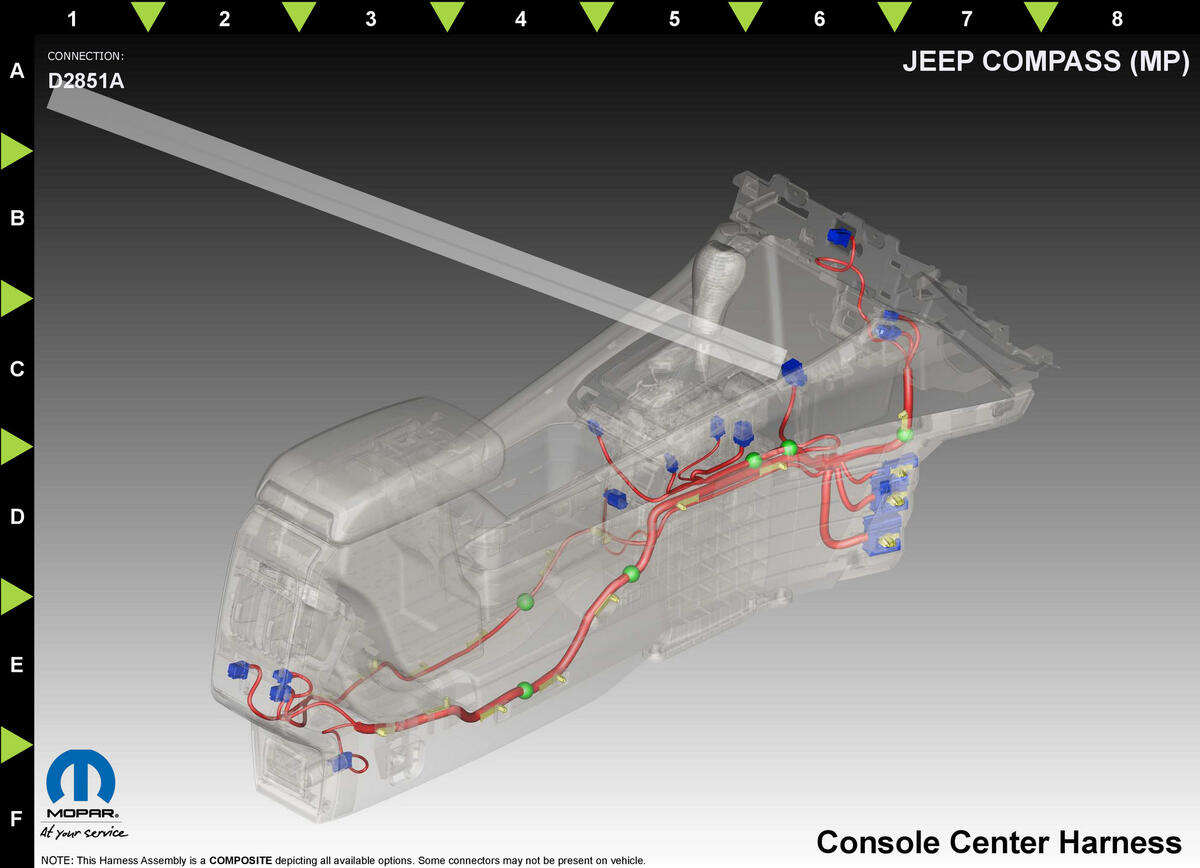

Fig 2: Module-Wireless Charging Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F721

PK/YE

0.75

IGNITION SWITCH OUTPUT (RUN)

N/A

D402

OG/VT

0.35

LIN BUS CBC 2

N/A

Z930

0.75

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
