Module-Power Liftgate C1 (Standard) Connector End View (D3839A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1924667-1

Part Description: Not Available

Connector No: D3839A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Power Liftgate C1 Connector End View (Standard)

Courtesy of CHRYSLER

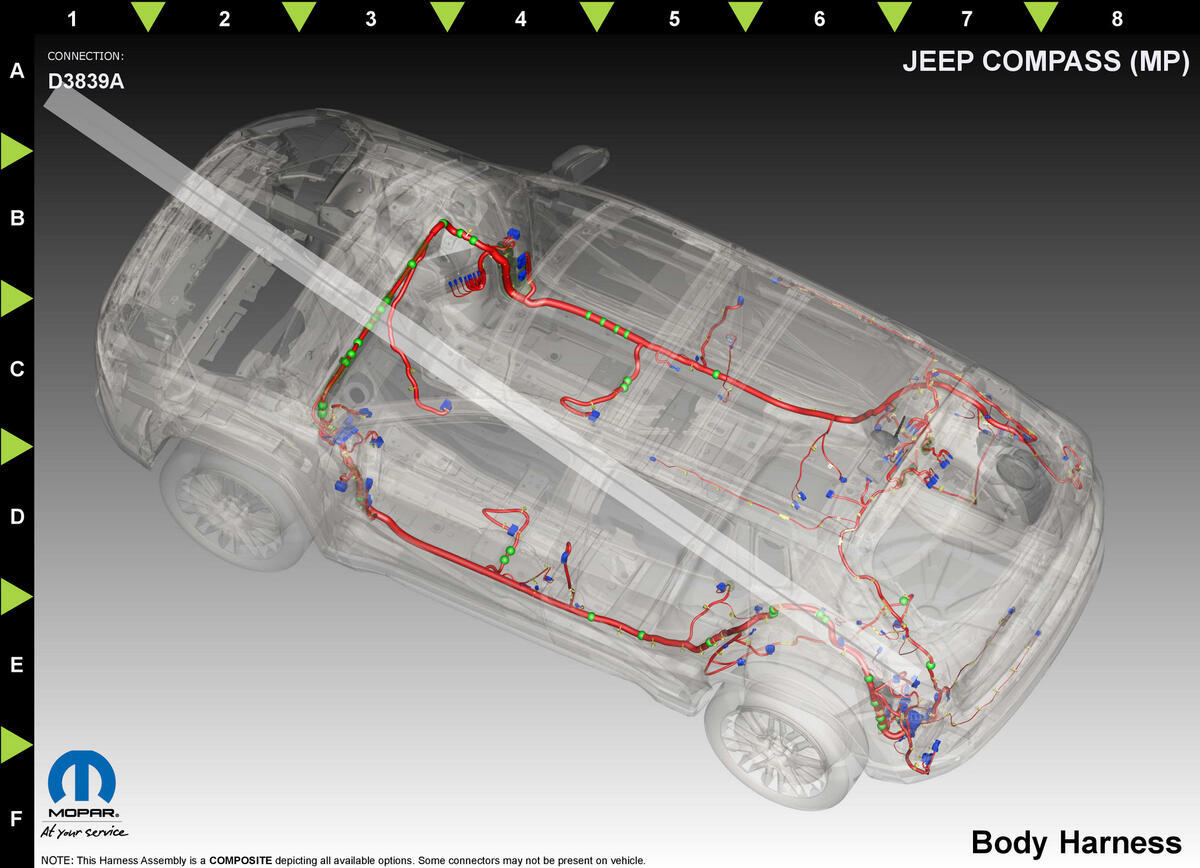

Fig 2: Module-Power Liftgate C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Q89

BG/OG

2.0

LIFTGATE CLOSE DRIVER

N/A

Q88

BG/BN

2.0

LIFTGATE OPEN DRIVER

N/A

Q203

OG/BG

0.50

POSITION SENSOR SUPPLY

N/A

Q204

OG/DG

0.50

POSITION SENSOR SIGNAL 1

N/A

Q205

OG/DB

0.50

POSITION SENSOR SIGNAL 2

N/A

Q201

OG/GN

0.50

LIFTGATE CLUTCH DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
