Module-Body Control C8 (Standard) Connector End View (D2762H)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 15482410_15482404

Part Description: Not Available

Connector No: D2762H

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Body Control C8 Connector End View (Standard)
GCWD1079547Courtesy of CHRYSLER

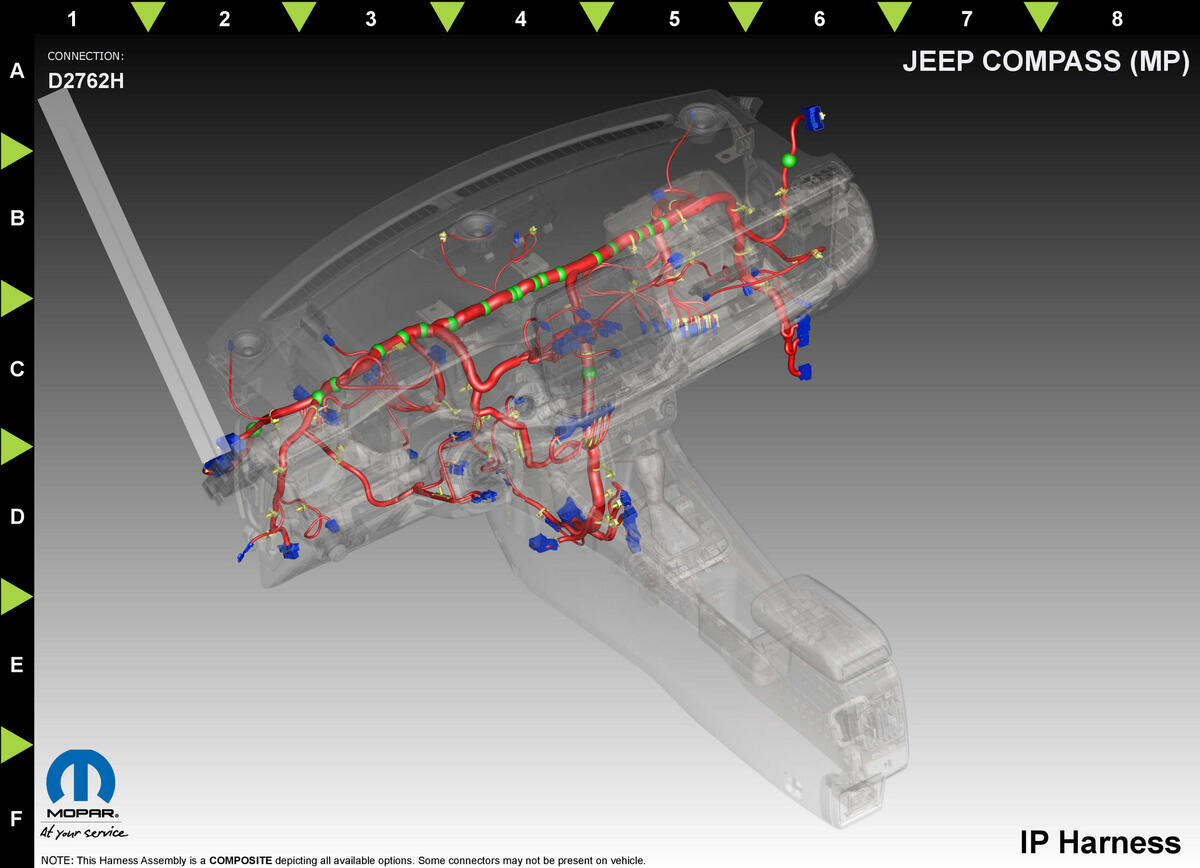

Fig 2: Module-Body Control C8 Component Location (Standard)
GCWD1294206Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
10 L116 WH/GN 0.35 HEADLAMP/FOG LAMP SWITCH SIGNAL N/A
11 X3 DG/VT 0.50 HORN SWITCH SENSE N/A
12 F20 PK/WH 0.50 IGNITION RUN/START CONTROL OUTPUT N/A
13 E12 OG/GY 0.35 PANEL LAMPS DRIVER N/A
16 L27 BG/BN 0.50 LEFT FRONT PARK/DRL LAMP DRIVER N/A
17 L28 BG/DG 0.50 RIGHT FRONT PARK/DRL LAMP DRIVER N/A
18 L12 WH/OG 0.35 TURN SIGNAL INPUT MUX N/A
19 L551 BG/BN 0.35 LEFT FRONT LIGHTING FAULT SENSE N/A
22 L37 WH/BN 0.35 HIGH BEAM SWITCH SENSE N/A
23 G69 VT/WH 0.35 VTSS INDICATOR DRIVER N/A
32 D404 WH/BN 0.35 LIN BUS N/A
36 L2 WH/BU 0.35 HAZARD GROUND N/A
39 G228 VT/BK 0.50 GROUND N/A
40 W113 BN/YE 0.35 REAR WIPER SWITCH MUX N/A
41 G200 VT/BN 0.50 MEMORY SELECT SWITCH MUX N/A
42 L307 WH/BN 0.35 HEADLAMP SWITCH MUX N/A
43 E2 OG/BN 0.35 PANEL LAMPS DRIVER N/A
46 F944 PK/GN 0.35 FUSED IGNITION N/A
48 M33 YE/BN 0.35 DOOR AMBIENT LAMP FEED DRIV N/A
51 L900 WH/YE 0.35 HEADLAMP SWITCH MUX RETURN N/A
54 G920 VT/YE 0.50 MEMORY SELECT SWITCH RETURN N/A
55 W114 BN/WH 0.35 FRONT WIPER WASHER SWITCH SIGNAL N/A
57 E3 OG/YE 0.35 PANEL LAMPS DRIVER N/A
58 W52 BN/YE 0.50 FRONT WIPER SWITCH MUX N/A
59 L91 WH/DB 0.35 HAZARD SWITCH SENSE N/A
(1) Pins not listed are not used for this connector
