Module-Body Control C4 (Standard) Connector End View (D2762D)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 15482409_15482404

Part Description: Not Available

Connector No: D2762D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Body Control C4 Connector End View (Standard)
GCWD1079504Courtesy of CHRYSLER

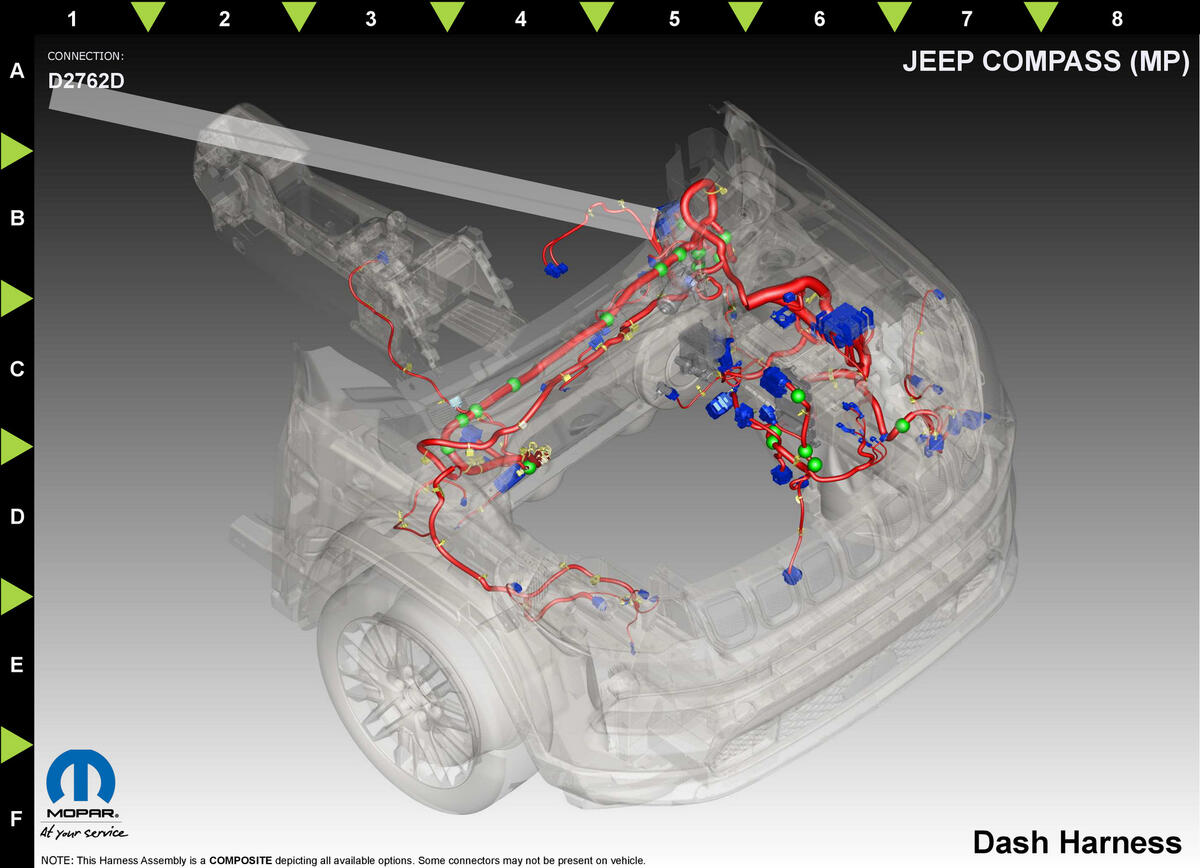

Fig 2: Module-Body Control C4 Component Location (Standard)
GCWD1294417Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
8 G70 VT/BU 0.50 HOOD AJAR SWITCH SENSE N/A
10 Q552 OG/DB 0.50 SUNROOF ENABLE/DISABLE N/A
11 B134 DG/YE 0.35 BRAKE SIGNAL 2 N/A
13 L103 BG/RD 0.75 LEFT FRONT PARK LAMP DRIVER N/A
13 L31 BG/VT 0.50 LEFT DRL LAMP DRIVER EXCEPT HID HALOGEN
15 F944 PK/GN 0.35 FUSED IGNITION N/A
18 B20 DG/OG 0.50 BRAKE FLUID LEVEL SIGNAL N/A
19 W1 BN/BG 0.35 WASHER SWITCH SENSE N/A
20 L101 BU/OG 0.50 LEFT FRONT LIGHTING FAULT SENSE N/A
21 B135 DG/GN 0.35 BRAKE SIGNAL 1 N/A
24 D402 OG/VT 0.35 LIN BUS CBC 2 N/A
26 X4 DG/WH 0.35 HORN RELAY CONTROL N/A
27 W9 BN/VT 0.35 ELECTRIC WINDSHIELD WIPER DE-ICER CONTROL N/A
28 L64 BG/GY 0.50 RIGHT DRL LAMP DRIVER EXCEPT HID HALOGEN
28 L104 WH/RD 0.75 RIGHT FRONT PARK LAMP DRIVER LED
29 F941 PK/WH 0.35 IGNITION RUN/START CONTROL OUTPUT N/A
30 F941 PK/WH 0.35 IGNITION RUN/START CONTROL OUTPUT N/A
31 D52 WH/BU 0.50 CAN CH (+) N/A
32 D497 DB/WH 0.50 CAN CH (+) N/A
33 D51 WH/BN 0.50 CAN CH (-) N/A
34 D498 YE 0.50 CAN CH (-) N/A
35 L552 BG/OG 0.35 RIGHT FRONT LIGHTING FAULT SENSE N/A
36 W7 BN/GY 0.50 WIPER PARK SWITCH SENSE N/A
39 W11 BN/VT 0.50 LOW WASH SW RTN 1 N/A
41 P330 GN/DG 0.50 LUMBAR RELAY CONTROL N/A
42 P501 GN/GY 0.50 DRIVER MIRROR TURN SIGNAL DRIVER N/A
44 L179 BU/DG 0.50 LEFT FRONT TURN LAMP DRIVER EXCEPT HID HALOGEN
46 L102 BU/BG 0.50 RIGHT FRONT LIGHTING FAULT SENSE N/A
47 D401 OG 0.35 LIN BUS 1 N/A
49 C115 DB 0.35 DEFOGGER RELAY CONTROL N/A
55 P502 GN/DG 0.50 PASSENGER MIRROR TURN SIGNAL DRIVER N/A
57 E12 OG/GY 0.35 PANEL LAMPS DRIVER N/A
58 L178 BU/GN 0.50 RIGHT FRONT TURN LAMP DRIVER EXCEPT HID HALOGEN
60 F100 PK/VT 0.50 FUSED IGNITION RUN CONTROL OUTPUT N/A
(1) Pins not listed are not used for this connector
