Module-Adaptive Cruise Control (Standard) Connector End View (D3098A)

Harness-Family: FASCIA_FRONT

Color: BLACK

Gender: FEMALE

Part Number: 805-125-576

Part Description: Not Available

Connector No: D3098A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

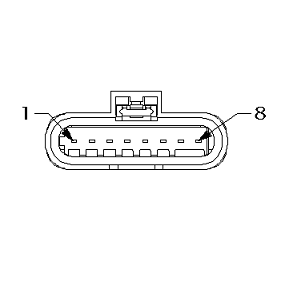

Fig 1: Module-Adaptive Cruise Control Connector End View (Standard)

Courtesy of CHRYSLER

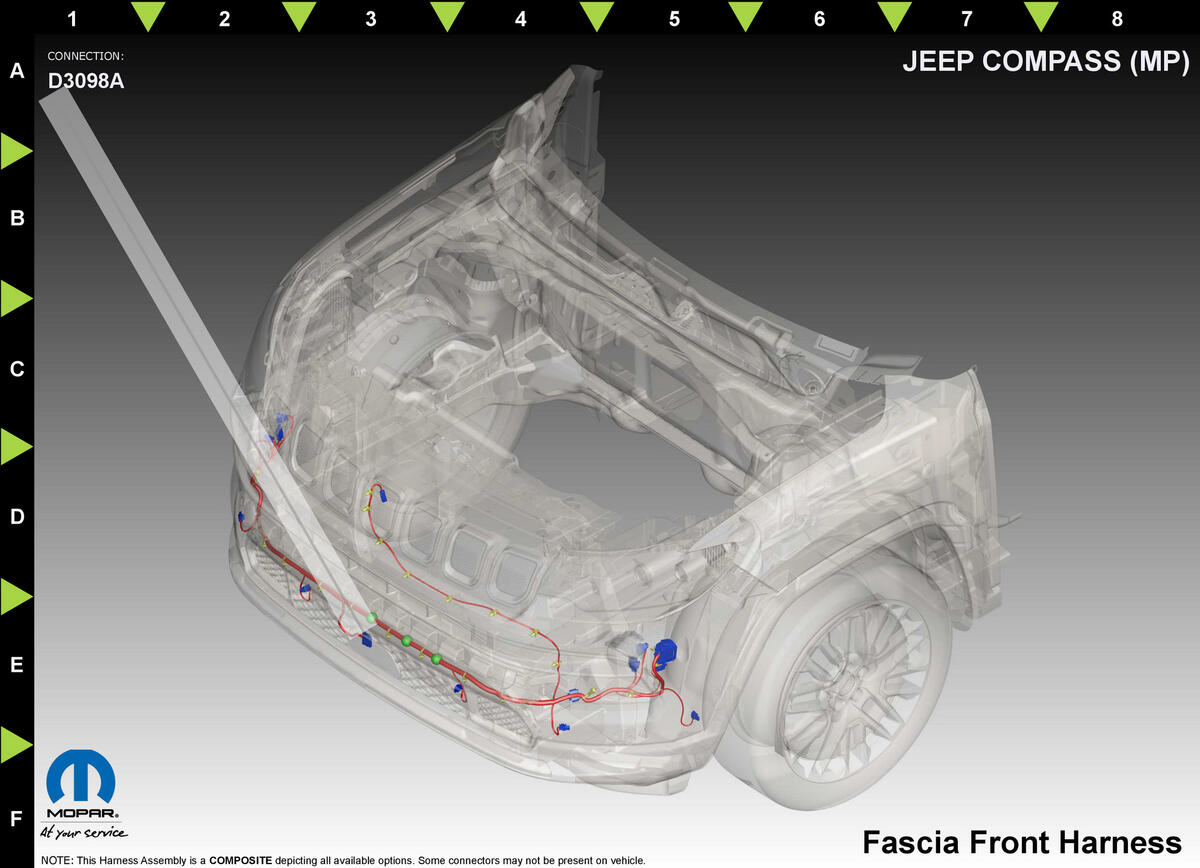

Fig 2: Module-Adaptive Cruise Control Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D448

0.50

PRIVATE CAN (-)

N/A

D449

WH/BG

0.50

PRIVATE CAN (+)

N/A

Z907

0.75

GROUND

N/A

D248

0.50

CAN C (-)

N/A

D249

YE/GY

0.50

CAN C (+)

N/A

F949

PK/GN

0.75

FUSED IGNITION

N/A

⁽¹⁾	Pins not listed are not used for this connector
