Display-Screen Center Stack C1 (Standard) Connector End View (D2996A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 30700-1081

Part Description: Not Available

Connector No: D2996A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Display-Screen Center Stack C1 Connector End View (Standard)
GCWD1006363Courtesy of CHRYSLER

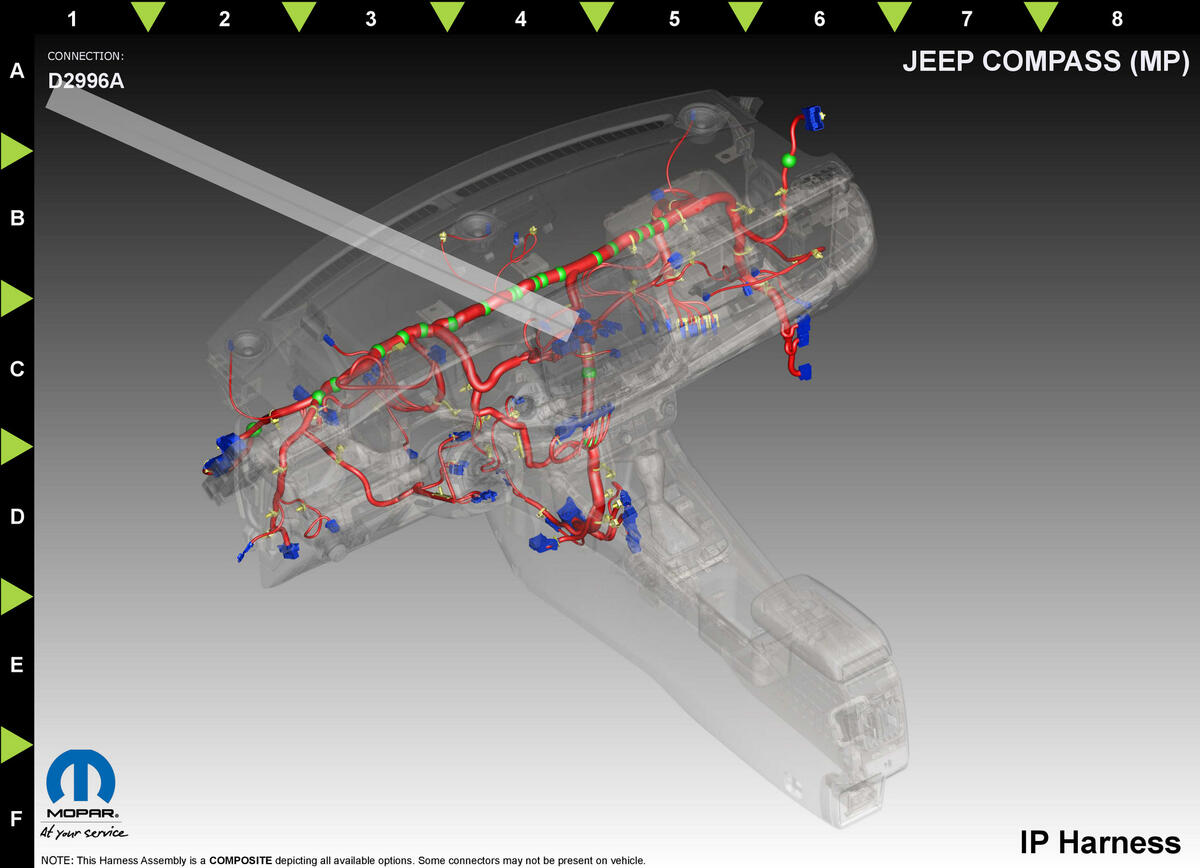

Fig 2: Display-Screen Center Stack C1 Component Location (Standard)
GCWD1294512Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A935 RD 0.50 FUSED B(+) N/A
2 D17 OG 0.50 CAN IHS (+) N/A
3 D17 OG 0.50 CAN IHS (+) N/A
6 D18 WH/OG 0.50 CAN IHS (-) N/A
7 D18 WH/OG 0.50 CAN IHS (-) N/A
8 Z930 BK/VT 0.50 GROUND N/A
(1) Pins not listed are not used for this connector
